Iridium Qualified 9704 Helical Antenna
Available with a lead time
Expect dispatch between Jul 02 and Jul 07

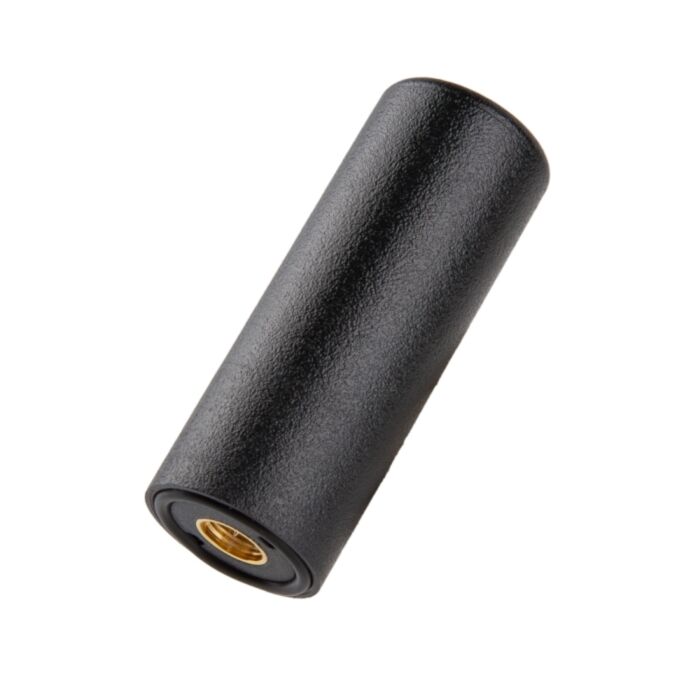

The Maxtena M1621HCT-P-SMA is a compact, high-performance passive Iridium antenna, designed for reliable data communication over the Iridium satellite network. It is ideal for use with the RockBLOCK 9704 satellite IoT module.
This rugged antenna features a precision-tuned helical design, providing consistent performance across the full Iridium band (1616–1626.5 MHz). It’s built for durability in challenging environments, with an IP67-rated housing and a low profile form factor that makes it ideal for mobile, maritime, and harsh outdoor deployments.
The M1621HCT-P-SMA connects via a standard SMA male connector and is compatible with a wide range of Iridium-enabled devices, including Ground Control’s RockBLOCK 9704 SMA.
Features & Specs
- Frequency Range: 1616-1626.5MHz
- Polarization: RHCP
- Peak Gain: 2.8 dBic (typical)
- Axial Ratio: 0.2 dB (typical) / 0.5 dB (max)
- VSWR: 1.5 (max)
- Impedance: 50 ohms
- Connector: SMA Male
- Dimensions: 49mm (height) x 19mm (diameter)
- Weight: 52g
- Environmental Rating: IP67
- Operating Temperature: -40°C to +85°C
Documentation
