SparkPNT GNSS Flex Module - ZED-X20P

SKU: GPS-29362 Brand: Sparkfun

Achieve centimeter-level positioning with the next generation of high-precision GNSS using the SparkPNT ZED-X20P GNSS Flex Module. This module features...

$476.20 AUD, inc GST

$432.91 AUD, exc GST

Available with a lead time
Expect dispatch between Oct 15 and Oct 20

For use in Australia

Operate only in bands and with settings that are permitted for your location and application. Check this product’s supported frequencies in the description/specs.
If you intend to operate outside shared/licence‑exempt conditions (e.g. in other bands, at higher power, with high‑gain antennas, or extended duty cycles), you must have the appropriate authorisation.

For use in other regions

Follow the spectrum rules for your country/region and select frequencies and settings accordingly.

A declaration of use will need to be submitted during checkout.

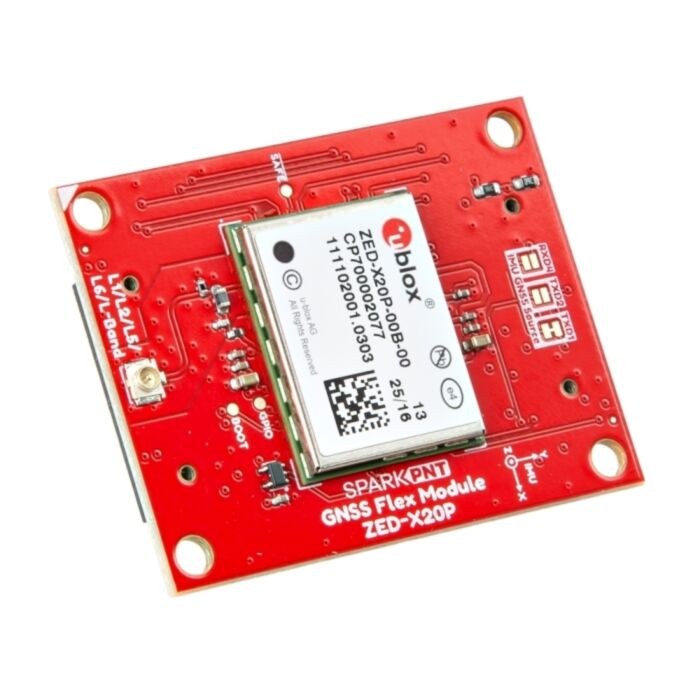

Achieve centimeter-level positioning with the next generation of high-precision GNSS using the SparkPNT ZED-X20P GNSS Flex Module. This module features the latest u-blox X20 engine, the powerful successor to the popular F9 engine, making it the ideal choice for demanding navigation and control applications.

Like all SparkPNT GNSS Flex Modules, this board is designed to be easily swappable and pin-compatible for future upgrades. It connects to your GNSS Flex pHAT carrier board via standardized 2x10-pin headers, which break out the module’s set of interfaces, including USB (See USB note), dual UARTs, and I²C for seamless integration into your Raspberry Pi or similar single-board computer (SBC).

X20P Marks the Spot

At the core of the Module is the u-blox ZED-X20P, a professional-grade, all-band GNSS receiver that delivers centimeter-level accuracy. It concurrently processes signals from all major constellations (GPS, Galileo, BeiDou, etc.) across all frequency bands, including L-band, providing incredibly fast and reliable fixes for control applications like UAVs, guidance systems, and auto-steering.

RTK & PPP Ready: Supports Real-time Kinematics (RTK), PPP-RTK, and Precise Point Positioning* for ultimate flexibility.
L-Band Corrections: Natively supports L-band correction services*, eliminating the need for external receivers.
High Update Rate: Ensures smooth and reliable operation in high-speed robotics and vehicle control systems.
Uncompromising Security: Features multi-layered defenses including a Root of Trust, advanced jamming and spoofing detection, and Galileo OSNMA cryptographic authentication.

This product requires an external antenna and a GNSS Flex carrier board. Users should have two options for connecting an external GNSS antenna to their GNSS receiver.

The GNSS Flex Module has a U.FL connector for an external antenna.
For a sturdier connection, an SMA connector on a GNSS Flex pHAT carrier board can be utilized. Users can simply jumper the U.FL connectors between the SparkPNT GNSS Flex Module and the carrier board with a short U.FL cable.

*According to u-blox, support for Precise Point Positioning (PPP) and full L-band correction services is still under development and will be made available through a future firmware update.

Features & Specs

GNSS Flex Module - ZED-X20P:

u-blox ZED-X20P Allband, GNSS module
- GNSS Constellations:
  - GPS (USA)
  - Galileo (EU)
  - BDS (China)
  - QZSS (Japan)
  - NavIC (India)
- SBAS Systems:
  - WAAS (USA)
  - EGNOS (EU)
  - BDSBAS (China)
  - MSAS (Japan)
  - GAGAN (India)
Two 2x20-pin, 2mm-pitch female headers
- 40-pin socket for GNSS Flex pHAT / Breakout
  - Power
    - 3.3V
    - Backup power
    - USB bus detect (not a power source)
  - USB (x1) (Read USB note)
  - UART (x2)
  - I²C bus
  - PPS signal (x1)
  - PVT signal (x1)
  - RTK signal (x1)
  - Event signal (x1)
U.FL Connector:
- GNSS Antenna (Active, Multi-band)
- 3.3V power for an active antenna
Dimensions: 44.0mm x 34.0mm (Approx. 1.73" x 1.34")
Four mounting holes:
- 4-40 screw compatible
- Hole centers: 39.0mm x 29.0mm
Header spacing: 36.0mm

Flex Module Interfaces:

USB: ZED-X20P USB (D+ and D-) (Read USB note)
I²C: ZED-X20P I2C (SDA and SCL)
Flex COM1: ZED-X20P UART1 (TX and RX only)
Flex COM2: ZED-X20P UART2 (TX and RX only)
Flex COM3: N/C
Flex COM4: N/C
PPS1: ZED-X20P TIMEPULSE
PPS2: N/C
EVENTA: ZED-X20P EXTINT
EVENTB: N/C
RTK LED: ZED-X20P RTK_STAT (Inverted)
PVT LED: ZED-X20P GEO_STAT (Geofence)

ZED-X20P General Features

Supply voltage: 2.7V to 3.6V
GNSS Support:
- GPS: L1C/A, L2C, L5
- Galileo: E1B/C, E5a, E6
- BeiDou: B1I, B1C, B2a, B3I
- QZSS: L1C/A, L1C/B*, L2C, L5, L6
- NavIC: L1*, L5
- SBAS: L1C/A
Interfaces:
- USB (Read USB note)
- UART x2
- SPI
- I²C
Features
- Programmable flash memory
- Carrier phase output
- Jamming detection
- Galileo OSNMA
- Secure boot
Services:
- AssistNow
- PointPerfect
Operating temperature: -40°C to 85°C

*: Feature in development

Documentation

Schematic
KiCad Files
Board Dimensions
STEP File
Hookup Guide
- u-center 2 Software
Component Documentation
- Product Summary
- Datasheet
- Integration Manual
- GNSS Product Nomenclature
- Firmware (HPG 2.00)
- Application Note
  - GPS L5 Configuration
Building a GNSS System
GitHub Hardware Repo
