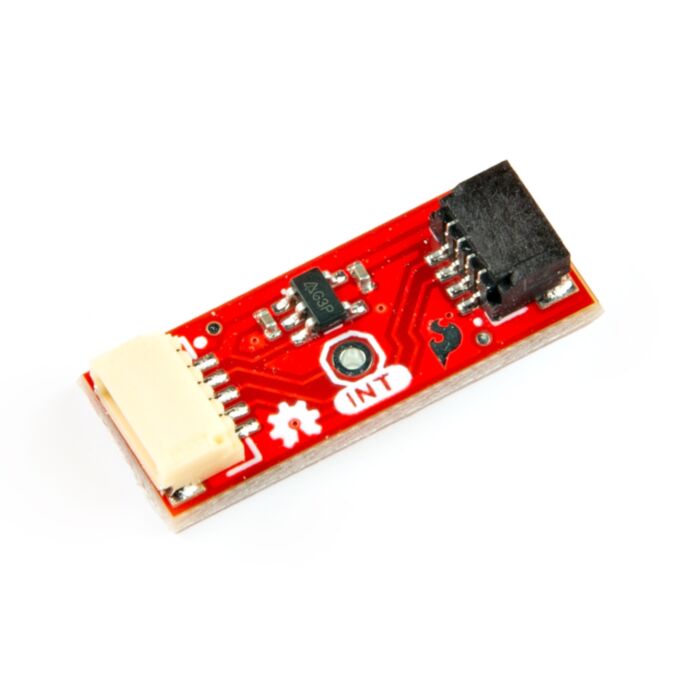

SparkFun ESLOV to Qwiic Bridge

SKU: BOB-23589 Brand: Sparkfun

The SparkFun ESLOV to Qwiic Bridge lets you quickly and easily connect Qwiic breakouts to Arduino boards with an ESLOV connector for I2C communication...

$3.50 AUD, inc GST

$3.18 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 29 and Dec 02

Quantity Discounts:

10-25 $3.09 (exc GST)
25+ $3.02 (exc GST)

The SparkFun ESLOV to Qwiic Bridge lets you quickly and easily connect Qwiic breakouts to Arduino boards with an ESLOV connector for I²C communication. ESLOV and Qwiic allow for simple assembly of I²C circuits without requiring soldering.

The ESLOV to Qwiic Bridge includes one Qwiic connector and one ESLOV connector, along with a plated through hole for the interrupt pin on the ESLOV connection. Since the ESLOV connectors have 5V for power, this bridge board includes a voltage regulator to drop that 5V down to 3.3V, making it safe for any Qwiic device.

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Features

1x Qwiic Connector
1x Arduino ESLOV Connector
Plated-Through Hole for ESLOV Interrupt Pin
AP2112K 3.3V/600mA Regulator

Documents
