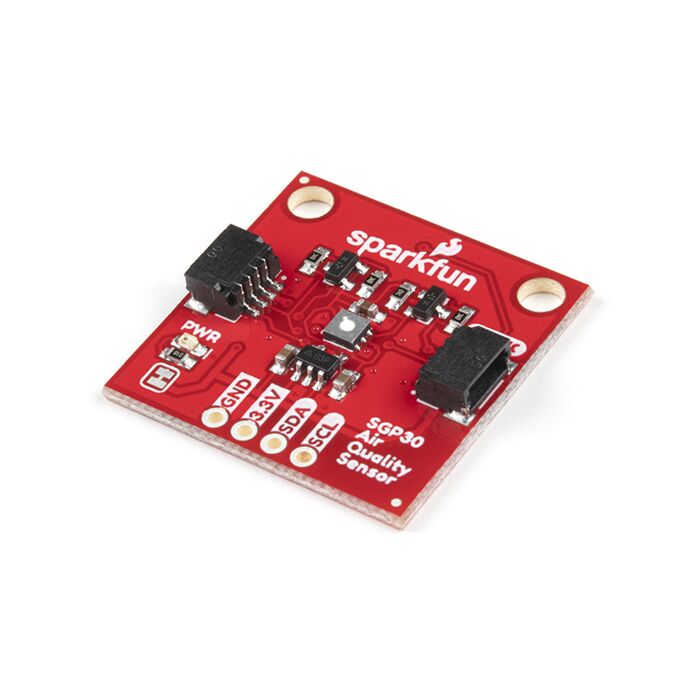

SparkFun Air Quality Sensor - SGP30 (Qwiic)

SKU: SEN-16531 Brand: Sparkfun

Retired Product

Replaced by: ADA3709

This product has been replaced by: ADA3709
This product is no longer available. This page is only for reference.

The SparkFun SGP30 Air Quality Sensor provides information on the quality of the air in your room or house by monitoring the volatile organic compounds around the sensor. The SGP30 Air Quality Sensor can return valid indoor air quality (IAQ) readings within 15 seconds of powering up! By comparison, typical air quality (IAQ) sensors are great for measuring CO₂ and volatile organic compounds (VOCs) but some of them require a burn-in time of 48 hours and a 20-min start up time.

Along with a very quick start-up time, the SGP30 is very resistant to contamination from other gases to ensure low drift and long-term stability for extremely reliable results. You can read the SGP30 gas sensor output measurements of total VOCs (TVOC) in parts per billion (ppb), carbon dioxide (CO₂) equivalent in parts per million (ppm) and H₂.

The SGP30 communicates via I²C so naturally Sparkfun broke out the pins on the sensor to Qwiic connectors so you can easily connect it to SparkFun's ever growing Qwiic Ecosystem!

The SparkFun Qwiic connect system is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can't hook it up wrong.

Get Started With the SparkFun SGP30 Air Quality Sensor Guide

Features

Uses I²C interface (Qwiic-enabled)
- I²C Address: 0x58
- 2x Qwiic Connectors
Operating voltage range
- 1.62V - 1.98V (Typ. 1.8V)
- Regulated to 1.8V from a 3.3V source if using the Qwiic cable
TVOC Output Signal
- Output range: 0 ppb to 60,000 ppb
- Resolution: Avg. 13 ppb. Refer to datasheet for specifics
CO₂ Output Signal
- Output range: 400 ppm to 60,000 ppm
- Resolution: Avg. 11ppm. Refer to datasheet for specifics
Ethanol Signal
- Measurement Range: 0 ppm to 1,000 ppm
- Accuracy: Typ. 15% of meas. value
- Resolution: 0.2% of meas. value
H₂ Signal
- Measurement Range: 0 ppm to 1,000 ppm
- Accuracy: Typ. 10% of meas. value
- Resolution: 0.2% of meas. value
Typical current consumption (varies based on mode)
- 48.2 mA Typ. (Measurement Mode)
- 2µA (Typ.) to 10µA (Sleep Mode)
