SparkFun Air Quality Breakout - CCS811

SKU: SEN-14193 Brand: Sparkfun

Retired Product

Replaced by: CE08560

This product has been replaced by: CE08560
This product is no longer available. This page is only for reference.

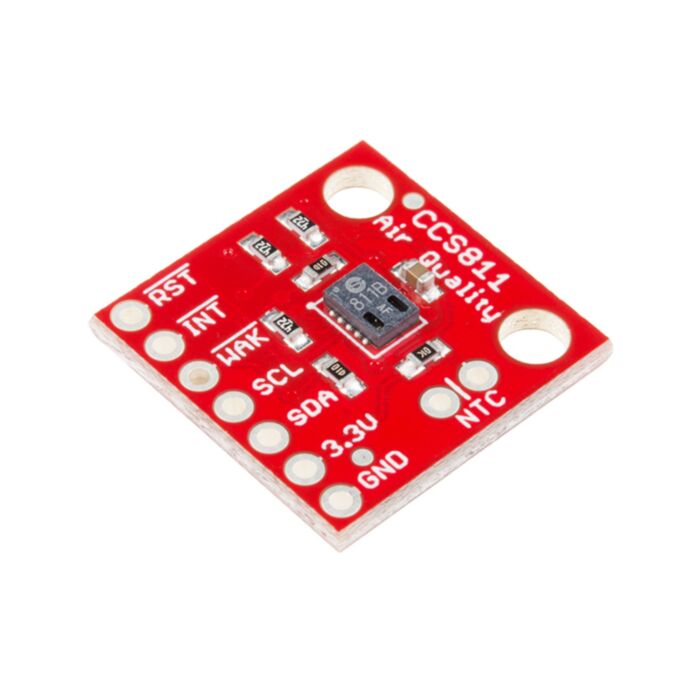

The CCS811 Air Quality Breakout is a digital gas sensor solution that senses a wide range of Total Volatile Organic Compounds (TVOCs), including equivalent carbon dioxide (eCO₂) and metal oxide (MOX) levels. VOCs are often categorized as pollutants and/or sensory irritants and can come from a variety of sources like construction materials (paint, carpet, etc.), machines (copiers, processors, etc.) and even people (breathing, smoking, etc.). This breakout is intended for indoor air quality monitoring in personal devices such as watches and phones, but we've put it on a breakout board so you can use it as a regular I²C device.

The onboard CCS811 supports multiple measurement modes that have been optimized for low-power consumption during an active sensor measurement and idle mode extending battery life in portable applications. Sparkfun have broken out each necessary pin on the CCS811 as well as additional pins to add your own NTC Thermistor to determine the temperature of the CCS811's surroundings, which can be used to help compensate the readings.

Note: Please be aware that the CCS811 datasheet recommends a burn-in of 48 hours and a run-in of 20 minutes (you must allow 20 minutes for the sensor to warm up and output valid data).

Get Started with the CCS811 Breakout Guide

Features:

Total Volatile Organic Compound (TVOC) sensing from 0 to 1,187 parts per billion
eCO₂ sensing from 400 to 8,192 parts per million
Five Operating Modes
Integrated MCU
Onboard Processing
Standard I²C Digital Interface
Optimized Low-Power Modes
Optional NTC Thermistor Pins

Documents:

Schematic
Eagle Files
Hookup Guide
Air Quality Measurements How-To
Programming and Interfacing Guide (CCS811)
Datasheet (CCS811)
Arduino Library
GitHub
