SparkFun Absolute Digital Barometer - LPS28DFW (Qwiic)

SKU: SEN-21221 Brand: Sparkfun

The SparkFun Qwiic LPS28DFW Absolute Digital Barometer offers a unique barometer breakout featuring the LPS28DFW from STMicroelectronics©...

$29.95 AUD, inc GST

$27.23 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 27 and Dec 02

Quantity Discounts:

10-25 $26.41 (exc GST)
25+ $25.86 (exc GST)

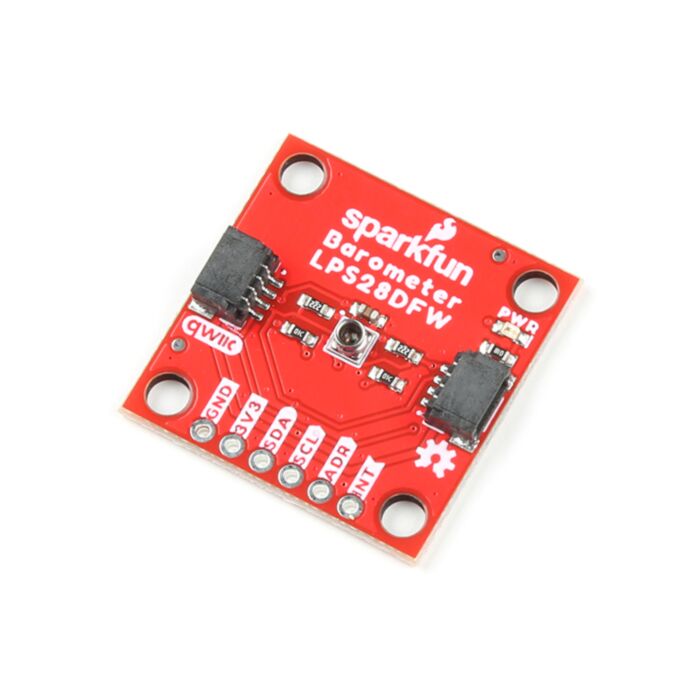

The SparkFun Qwiic LPS28DFW Absolute Digital Barometer offers a unique barometer breakout featuring the LPS28DFW from STMicroelectronics^©. The LPS28DFW is an absolute barometer with a water-resistant package making it perfect for pressure measurement applications where the sensor is exposed to or even submerged in water. The Qwiic system allows for integration into your I²C system with no soldering required. This Qwiic breakout also includes 0.1"-spaced PTH pins connected to the sensor's communication interface and interrupt pins for applications that require a traditional soldered connection.

The sensor has two full-scale measurement ranges of 260 - 1260hPa and 260 - 4060hPa with an absolute pressure accuracy of 0.5hPa. The LPS28DFW is composed of a piezoresistive pressure sensor with a metal lid and gel encasing to protect the sensing elements from water and other environmental hazards.

Important! While the LPS28DFW is protected from water, the rest of the components on these breakouts are not protected by any conformal coating and can be damaged by exposure to liquids. Users who intend to use these breakouts in applications where the board may be exposed to water or other liquids should apply a conformal coating to the board or place it in a sealed container prior to use.

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Get Started with the SparkFun Qwiic LPS28DFW Absolute Digital Barometer Guide

Features

Supply voltage range
- 1.7 - 3.6V
Current consumption
- One shot mode: ~1.7 - 32.2µA
- Continuous mode: ~2.5 - 783.8µA
I²C interface (Qwiic-enabled)
I²C addresses
- 0x5C (Default), 0x5D
Water-resistant sensor package
Dual pressure ranges
- Mode 1: 260 - 1260hPa
- Mode 2: 260 - 4060hPa
Interrupt features
- Data-ready
- FIFO flags
- Pressure threshold
Output data rate range
- 1 - 200Hz
2x Qwiic Horizontal Connectors
