Solarbotics GM2 224:1 Gear Motor Offset Output

SKU: POLOLU-180

$10.68 AUD, inc GST
$9.71 AUD, exc GST

More Views

Solarbotics GM2 224:1 Gear Motor Offset Output
10.68 AUD

SKU: POLOLU-180

$10.68 AUD, inc GST
$9.71 AUD, exc GST
In stock, with a short lead time. 43 units dispatch in 4 to 9 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 28th of Aug with Express Post within Australia.
Shipping Offer

This 224:1 gearmotor (gearbox with brushed DC motor) is a great low-cost alternative to modified hobby servos or Tamiya gearboxes. The low-current motor is a perfect match for Pololu's qik 2s9v1 dual serial motor controller, and the compact size makes this unit an attractive choice for small robot designs.

This gearmotor comes pre-assembled, with the gears fully enclosed. There are built-in mounting holes, and the output shaft is 7mm in diameter with two sides flattened (the “D” output is not meant to be used). A built-in safety clutch engages at approximately 60 oz-in.

Compatible products include a custom-molded GMPW plastic wheel, and the Solarbotics GMW motor mount, which can be used as a wheel itself or as a mounting point for other wheels or mechanisms. Solarbotics makes a mounting bracket that works with this motor, and Pololu's L-brackets and extended L-brackets for plastic gearmotors are also compatible with this motor (though you might need longer screws than the ones included with the Pololu brackets).

For similar gearmotors, you might want to take a look at:

To increase the power of this gearbox, you can replace the motor with a higher-power RM2 motor. For a replacement motor, see the RM3 motor.

Specifications

  • Description: Offset/inline
  • Gear ratio: 224:1
  • 3 V Operation:
    • No-load RPM: ~ 24
    • No-load current: ~ 40 mA
    • Stall current: ~ 400 mA
    • Stall torque: ~ 49 oz-in
  • 6 V Operation:
    • No-load RPM: ~ 46
    • No-load current: ~ 50 mA
    • Stall current: ~ 710 mA
    • Stall torque: ~ 57 oz-in
  • Weight: 32 g

Solarbotics GM2 gearmotor dimensions (in mm).

You can download a pdf version of this drawing with imperial dimensions (117k pdf) or metric dimensions (117k pdf).

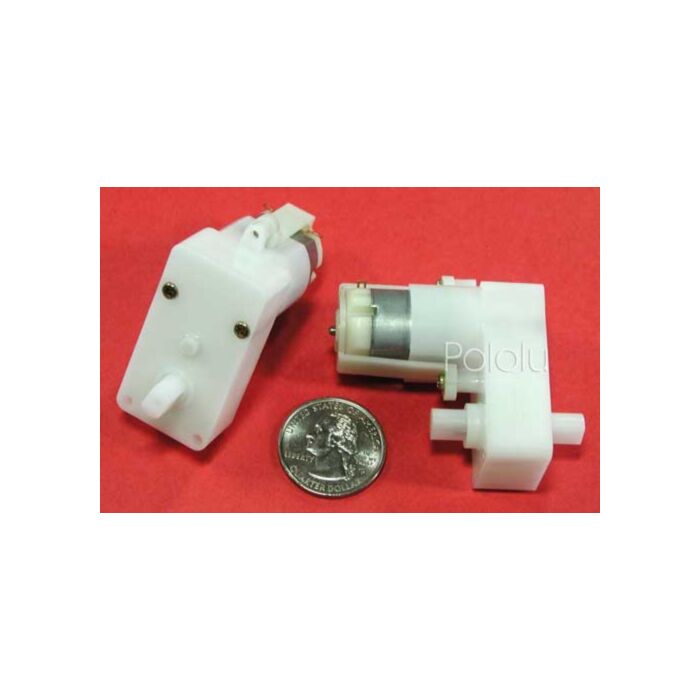

Though the product picture shows two gearmotors, this product is for a single motor.
