Snap-action 5-Wire Block Connector (12-28 AWG) - Pack of 3

SKU: ADA874

$8.50 AUD, inc GST
$7.73 AUD, exc GST

More Views

Snap-action 5-Wire Block Connector (12-28 AWG) - Pack of 3
8.5 AUD

SKU: ADA874

$8.50 AUD, inc GST
$7.73 AUD, exc GST
Shipping Offer

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

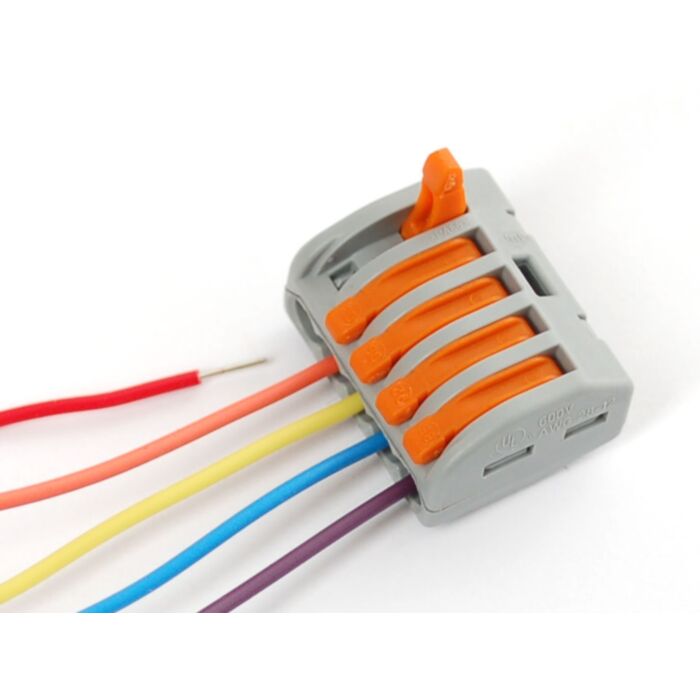

These are like the fancy electronics equivalent of the wire nuts electricians use to bind wires together. They are a lot easier to use as well! Each block connector has a metal block inside and five levers that snap open and close to bind stranded/solid-core wire. No screwdrivers required! They're super handy for free wiring and can handle up to 20A at 300V with UL listing so you can also use them for mains wiring. Use any wires from 12 AWG down to 28 AWG.

Each package comes with 3 pieces of 5-wire blocks.

Technical Details

Datasheet
  • Connection method - CAGE CLAMP® CONNECTION
  • Cross section [mm²] - 0.08 - 4 mm²
  • Cross section [AWG] - 28 - 12 AWG
  • Measured voltage EN - 400 V
  • Measured shock voltage - 4 kV
  • Pollution degree - 2
  • Current intensity EN - 32 A
  • Weight - 6.6 g
  • Color - gray
  • Wiring type - Side-entry
  • No. of connection Points - 5
  • No. of potentials - 1
  • Height - 14.5 mm
  • Height - 0.571 in
  • Width - 26.6 mm
  • Width - 1.047 in
  • Depth - 20.5 mm
  • Depth - 0.807 in
  • Strip length from - 9 mm
  • Strip length to - 10 mm
  • Strip length - 0.37 in
