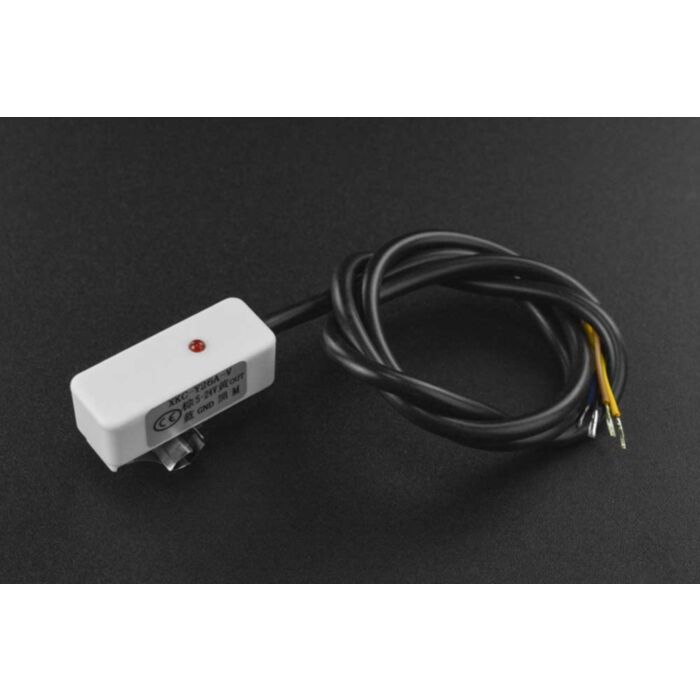

Small Pipe Diameter Level Sensor

SKU: SEN0370 Brand: DFRobot

This is a non-contact liquid level sensor with a status indicator and adjustable sensitivity. It is especially suitable for detecting the liquid level of all sorts...

$21.53 AUD, inc GST

$19.57 AUD, exc GST

Available with a lead time
Expect dispatch between May 20 and May 27

Quantity Discounts:

10+ $19.28 (exc GST)

This is a non-contact liquid level sensor with a status indicator and adjustable sensitivity. It is especially suitable for detecting the liquid level of all sorts of non-metal small diameter pipes(outer diameter D≤10MM). The status feedback of the sensor can be given in real-time. Besides that, the sensor comes with a 4pin sensor adaptor that can directly collect digital signal, convenient for connecting with Arduino or other main-controllers. This liquid level sensor can be widely used in liquid detection of water dispenser, small pipes, and perfusion tubes.

SEN0370-desc-img-1

This non-contact liquid level sensor is developed on advanced signal process technology by high-speed signal processing chip. It can measure the liquid level of a closed container without the influence of container wall thickness, and will not be affected by corrosive liquids like strong acid and alkali, or other impurities.

Working Principle

A Non-contact liquid level sensor is used for detecting whether there is liquid by water induction capacitor. When there is no liquid approaching the sensor, there will be some certain static capacitance to ground on the sensor due to the presence of distributed capacitance. When the liquid level rises slowly to approach the sensor, the liquid parasitic capacitor will be coupled to the static capacitance so that the final capacitance value will increase. The changed capacitance signal will be input to the control IC for signal conversion, by which to transform the changed capacitance value into the variation of the certain electric signal. Then the degree of the variation can be detected and determined through specific algorithms. When the variation exceeds a threshold value, it means the liquid level reaches the sensing point.

Features

High stability and sensitivity
Adjustable sensitivity
With status indicator

Specification

Power Supply: 5~24V
Output: switch quantity
Response Time: 500ms
Operating Temperature: -5~105°C
Suitable Pipe Diameter: ≤10mm
Liquid Level Error: ±1.5mm
Material: ABS
Waterproof Performance: IP65

Documents

Product Wiki

Parts List

Small Pipe Diameter Level Sensor x1
Gravity: 4Pin Sensor Adapter x1
Screwdriver x1
