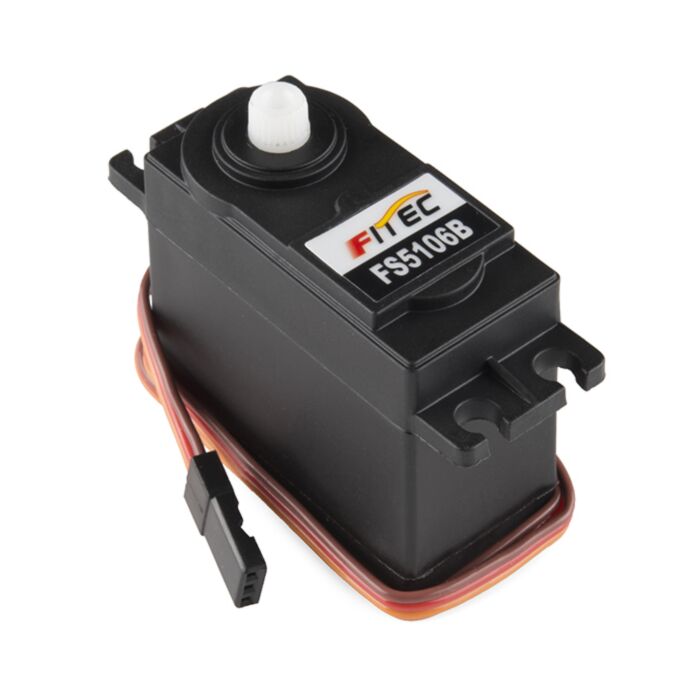

Servo - Generic High Torque (Standard Size)

SKU: ROB-11965

$19.95 AUD, inc GST
$18.14 AUD, exc GST

More Views

Servo - Generic High Torque (Standard Size)
19.95 AUD

SKU: ROB-11965

$19.95 AUD, inc GST
$18.14 AUD, exc GST
In stock, with a short lead time. 487 units dispatch in 3 to 6 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 28th of Aug with Express Post within Australia.
Shipping Offer

Here is a powerful, low-cost, reliable servo for all your mechatronic needs. This servo is able to take in 6 volts and deliver 83.47 oz-in. of maximum torque at 0.16 sec/60°

This is a tough little servo with a standard 3 pin power and control cable, and all hardware listed below.

Features:

  • Voltage: 4.8-6.0 Volts
  • Torque: 69.56/83.47 oz-in. (4.8/6.0V)
  • Speed: 0.18/0.16 sec/60° (4.8/6.0V)
  • Direction: Counterclockwise 1000-2000usec
  • Rotation: 180°
  • Dual Ball Bearing
  • Nylon Gears
  • 25T Spline

Includes:

  • 1x FS5106B High Torque Servo
  • 1x Double Arm Horn
  • 1x Circle Horn
  • 1x Four Point Horn
  • 1x Six Point Horn
  • 2x 3x10mm Phillips Screw
  • 4x 2x13mm Mounting Phillips Screw
  • 4x Rubber Grommets
  • 4x Brass Eyelets

Dimensions:

  • 40.8 x 20.1 x 38mm
  • Wire Length: 300mm
  • Weight: 40g

Documents:

Replaces:ROB-9064

Documentation and Resources:
