Servo Extension Cable 24" Female - Female

SKU: POLOLU-785 Brand: Pololu

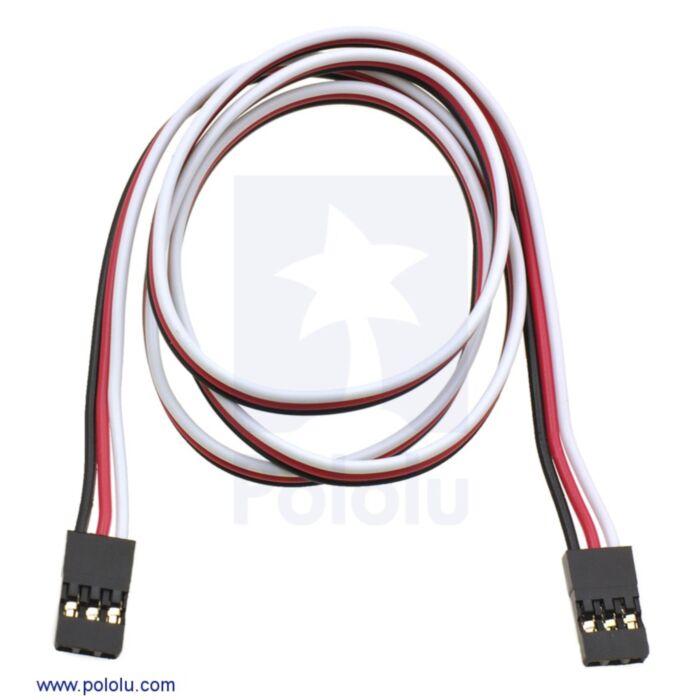

This 24-inch (600-mm), flat cable has 22-AWG wires and female “JR”-style connectors on both ends, the same kind of connector commonly found on RC hobby servos. It can be used to make connections between devices with 0.1" 3-pin male headers, such as between RC servo controllers or RC receivers and motor controllers with an RC interface. It can also be a convenient way to connect various 3-pin sensors to a robot controller.
$8.55 AUD, inc GST
$7.77 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 07 and Apr 08

Quantity Discounts:

  • 10+ $7.46 (exc GST)
  • 25+ $7.23 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This servo extension cable has female JR connectors on both ends, so it can be used to make connections between devices with 0.1" 3-pin male headers, such as between RC servo controllers or RC receivers and motor controllers with an RC interface. The cable’s connectors are commonly found on RC servo leads and work with both male JR and male Futaba J connectors. They have gold-flashed contacts on a 0.1" spacing and are joined by 22-AWG, 60-strand wires that make this cable more flexible than standard servo cables.

Note: The cable’s female connectors are the same as what is found on most generic servos and fits nicely with 0.1" male headers, but is often referred to as “male” in the RC hobby industry. The picture below shows the cable connectors labeled with Pololu's gender convention.

Female “JR”-style connector commonly found on servo cables (often referred to as “male” in the RC hobby industry).

These female-to-female cables are available in two styles: flat, with wires stuck together side by side, and twisted, with wires twisted around each other to decrease electromagnetic interference (EMI). The twisted versions are especially soft and flexible. These cables are also available in three lengths: 6", 12", and 24".

12" (300 mm) female-female RC servo extension cable.

Twisted servo extension cable 12" female – female.

Pololu also sell flat and twisted male-to-female servo extension cables.

Servo cable color convention

  • brown or black = ground (GND, battery negative terminal)
  • red = servo power (Vservo, battery positive terminal)
  • orange, yellow, white, or blue = servo control signal line

Note: Cable color may vary from what is shown in the product picture. Possible color combinations are black, red, and white or brown, red, and orange.

People often buy this product together with:

Servo Extension Cable 6" Female - FemaleServo Extension Cable 6" Female - Female
Servo Extension Cable 12" Female - FemaleServo Extension Cable 12" Female - Female
0.1" (2.54mm) Crimp Connector Housing: 1x3-Pin 25-Pack0.1" (2.54mm) Crimp Connector Housing: 1x3-Pin 25-Pack

Dimensions

Length: 24 in

General specifications

Gender: Female-Female
Style: flat
