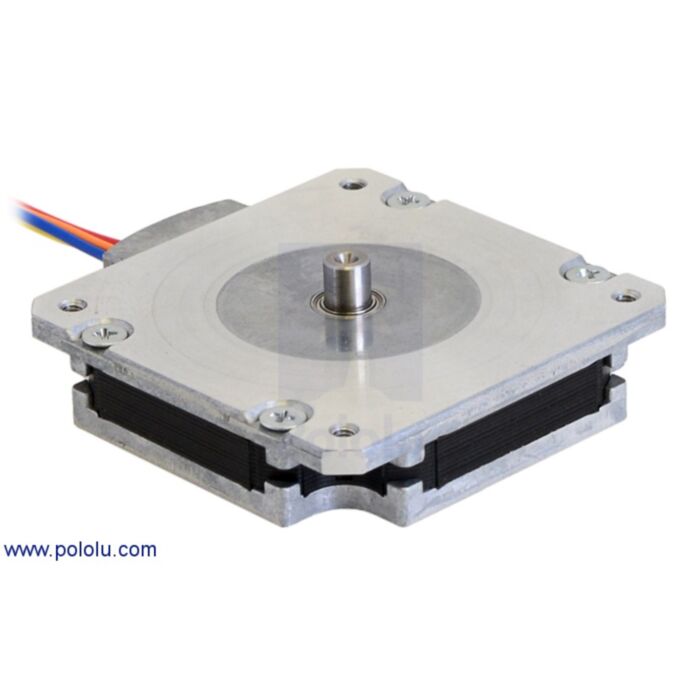

Sanyo Pancake Stepper Motor: Bipolar, 200 Steps/Rev, 50×11mm, 4.5V, 1 A/Phase
Quantity Discounts:
- 5-10 $130.86 (exc GST)
- 10+ $126.77 (exc GST)
Out of Stock
Sign up to get notified when it's available to order.
 |
Bipolar stepper motor wires are terminated with bare leads. |
|---|
 |
Sanyo bipolar stepper motor wiring diagram. |
|---|
This pancake bipolar stepping motor from Sanyo has a 1.8° step angle (200 steps/revolution). Each phase draws 1 A at 4.5 V, allowing for a holding torque of 1 kg-cm (14 oz-in). The motor has four color-coded wires terminated with bare leads: red and yellow connect to one coil; orange and blue connect to the other. It can be controlled by a pair of suitable H-bridges (one for each coil), but Pololu recommend using a bipolar stepper motor driver or one of Pololu's Tic Stepper Motor Controllers. In particular, the Tics make control easy because they support six different interfaces (USB, TTL serial, I²C, RC, analog voltages, and quadrature encoder) and are configurable over USB with Pololu's free configuration utility.
Pololu's 5 mm universal mounting hub can be used to mount objects on the stepper motor’s 5 mm-diameter output shaft.
Specifications
- Size: 50 mm square × 11 mm, not including the shaft
- Weight: 90 g (3.2 oz)
- Shaft diameter: 5 mm
- Steps per revolution: 200
- Current rating: 1 A per coil
- Voltage rating: 4.5 V
- Resistance: 4.5 O per coil
- Holding torque: 1 kg-cm (14 oz-in)
- Inductance: 2 mH per coil
- Lead length: 30 cm (12")
- Output shaft supported by two ball bearings
More specifications are available in the datasheet (352k pdf).
Dimensions
The following diagram shows the stepper motor dimensions in mm. The dimension labeled “L” is 11 mm. Though the dimension diagram below shows output shafts on both sides, this stepper motor only has a single output shaft (on the side with the mounting plate) with a length of 5 mm and a diameter of 5 mm. This shaft works with Pololu's 5 mm universal mounting hub.
 |
Pololu also carry a stronger, taller version of this stepper motor where “L” in the above diagram is 16 mm and all other dimensions are the same.
 |
Bottom view of the 50×11mm Sanyo pancake stepper motor. |
|---|
Stepper Motor Applications
Stepper motors are generally used in a variety of applications where precise position control is desirable and the cost or complexity of a feedback control system is unwarranted. Here are a few applications where stepper motors are often found:
- Printers
- CNC machines
- 3D printer/prototyping machines (e.g. RepRap)
- Laser cutters
- Pick and place machines
- Linear actuators
- Hard drives
 |
Sanyo stepper motors; from left to right: 14mm single shaft, 42×18.6mm, 50×11mm, 14mm double shaft |
|---|
Note: Sanyo Denki originally called this product the “SANMOTION F2 stepping motor model SS2501-5041”, but as of October 2014, they transitioned to using the new part number SS2501-8040 or SS2501-8040P. This is only a part number change; the product itself is exactly the same.
People often buy this product together with:
 | Pololu Universal Aluminum Mounting Hub for 5mm Shaft, #4-40 Holes (2-Pack) |
 | Sanyo Pancake Stepper Motor: Bipolar, 200 Steps/Rev, 42×18.6mm, 5.4V, 1 A/Phase |
 | Sanyo Pancake Stepper Motor: Bipolar, 200 Steps/Rev, 42×11.6mm, 3.5V, 1 A/Phase |
Dimensions
| Size: | 50 mm square × 11 mm1 |
|---|---|
| Weight: | 90 g |
| Shaft diameter: | 5 mm |
General specifications
| Current rating: | 1000 mA2 |
|---|---|
| Voltage rating: | 4.5 V |
| Holding torque: | 14.16 oz·in |
| Steps per revolution: | 200 |
| Resistance: | 4.5 Ohm2 |
| Inductance per phase: | 2 mH |
| Number of leads: | 4 |
| Lead length: | 30 cm |
| Encoders?: | N |
