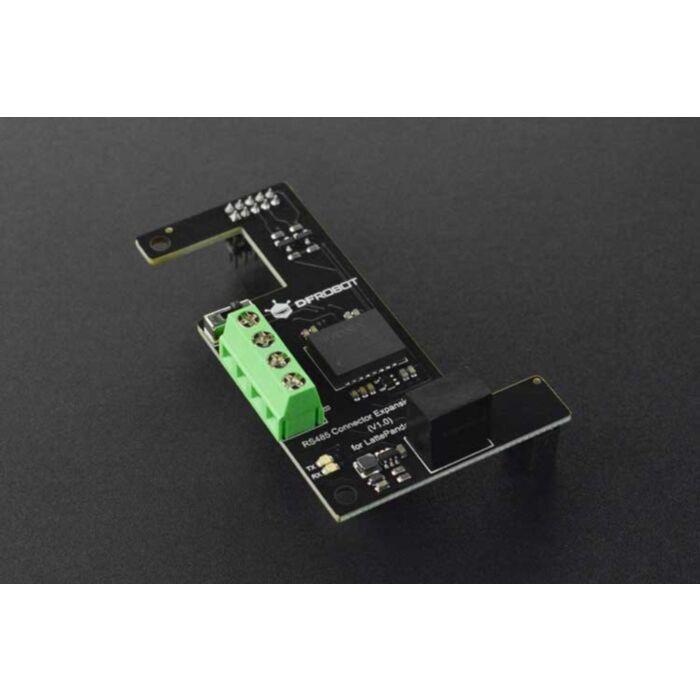

RS485 Connector Expansion Shield for LattePanda V1

SKU: DFR0684 Brand: DFRobot

An industrial-grade RS485 shield for LattePanda! It is designed to expand a reliable RS485 interface(OPEN4) for LattePanda V1. The receiving and sending of the module...

$43.30 AUD, inc GST

$39.36 AUD, exc GST

Available with a lead time
Expect dispatch between May 21 and May 27

Quantity Discounts:

10-25 $38.18 (exc GST)
25+ $37.40 (exc GST)

An industrial-grade RS485 shield for LattePanda! It is designed to expand a reliable RS485 interface(OPEN4) for LattePanda V1. The receiving and sending of the module are isolated and it features signal isolation, power isolation, lightning surge protection, transient voltage resistance, and bus-protection, which assures reliable data transmission and effectively protects your LattePanda main-board. Apart from that, the module offers 12V power output and comes with on-board 120Ω terminal matching resistor that can be controlled by the switch.

The product employs a stackable connection, which makes it able to be easily fixed onto LattePanda main-board by copper columns without blocking the heat dissipation area of the main-board. This RS232 Connector Expansion Shield can be safely applied in industrial scenarios.

Features

Signal Isolation and Power Isolation
Reliable Communication
12V Power Output
On-board 120Ω Terminal Matching Resistance
Easy to Connect and Use
12mm Mounting Copper Columns

Applications

RS485 communication scenarios

Specification

Operating Voltage: 5V
TTL Level: 1.8V
Output Voltage: 12V
Operating Temperature: -40°C to +85°C
Baud Rate: 115200 bps (LattePanda V1 TTL can only adjust to 115200 bps)
Isolation Voltage: 2500VDC
Not Support Hot Plugging

Documents

Product wiki

Parts List

RS485 Connector Expansion Shield for LattePanda V1 x1
M3 Double-way Hexagonal Copper Column(12mm) x3
M3 Round Head Screw x6
