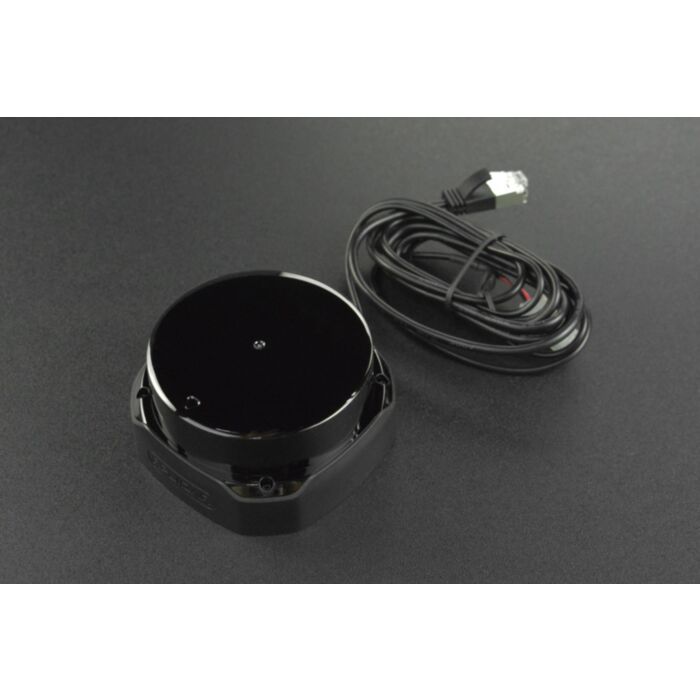

RPLiDAR S2E 360° Laser Range Scanner-30m (12V)
Available with a lead time
Expect dispatch between May 16 and May 22
Quantity Discounts:
- 3+ $857.14 (exc GST)
DTOF Ranging Method
Thanks to the DTOF (Direct Time-of-Flight) technology developed by SLAMTEC, RPLIDAR S2E guarantees consistent ranging resolution. Even in longer distance, the resolution always keeps the same. Also, DTOF allows RPLIDAR S2E to detect almost ANY thing with different material types, no matter a darker object, a high reflective mirror, or even transparent glass.
30 Meters Range Radius
The ranging distance radius of RPLIDAR S2E is up to 30 meters, which meets the high demand requirements of robotic navigation applications in commercial scenarios, such as hotels, restaurants, shopping malls, office buildings, etc.
32000 Times per Second sample rate
RPLIDAR S2E improves the internal optical design and measurements system to achieve the sample rate up to 32000 times, that makes more environmental details to be retrieved during the mapping and navigation process.
Resistance to Strong Sunlight, Workable in both Indoor and Outdoor
RPLIDAR S2E has a stable ranging and high-resolution mapping performance in indoor and outdoor environments, even in 80Klux strong sunlight interference.
Excellent ranging accuracy
For objects with different reflectivities, such as lenses and mirrors with high reverse surfaces, consistent and accurate distance measurements can be obtained.
Small & Compact size, fits the overall appearance requirements of robots
The height of the scanning optical area of RPLIDAR S2E is only 18mm, which makes it easy to be embedded.
High compatibility
RPLIDAR S2E shares the same interface port with A series RPLIDARs. Existing products can upgrade to RPLIDAR S2E seamlessly without the need of changing hardware or software design.
Support serial ports and network ports communication modes.
The S2E provides serial ports and network ports communication modes. It is convenient for users to use in various environments.
IP65 proof level
IP65 proof level, combined with a cover to protect its interior mechanism from external interference, which provides a stable working environment and meets the industrial application.
Dimension
Selection Guide
Features
Applications
Specification
Documents
Parts List
