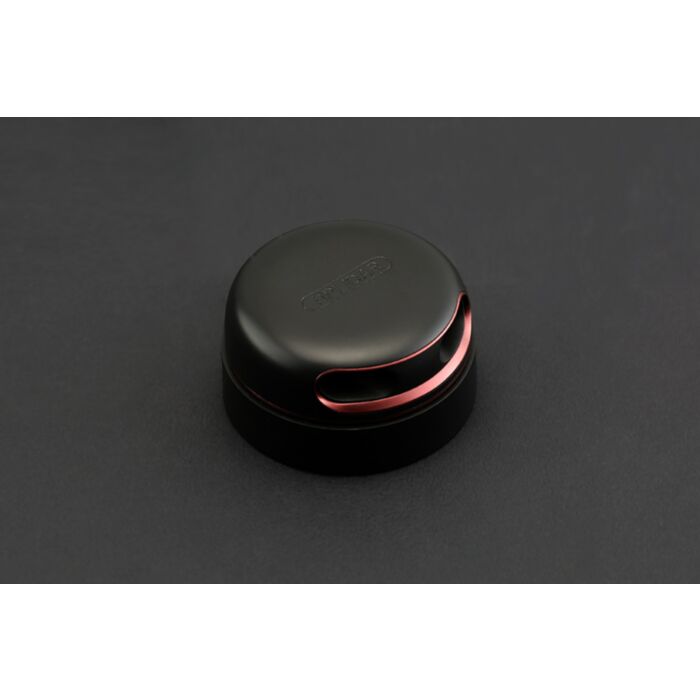

RPLIDAR A2 - 360 Degree Laser Scanner Development Kit

SKU: DFR0445 Brand: DFRobot

Retired Product

Replaced by: SEN-14756

This product has been replaced by: SEN-14756
This product is no longer available. This page is only for reference.

Introduction

Good News！The newest Low Cost 360 Degree Laser Range Scanner

RPLIDAR A2 is the next generation low cost 360 degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. It can take up to 4000 samples of laser ranging per second with high rotation speed. And equipped with SLAMTEC patented OPTMAG technology, it breakouts the life limitation of traditional LIDAR system so as to work stably for a long time.

The system can perform 2D 360-degree scan within a 6-meter range. The generated 2D point cloud data can be used in mapping, localization and object/environment modeling.

The typical scanning frequency of the RPLIDAR A2 is 10hz (600rpm). Under this condition, the resolution will be 0.9°. And the actual scanning frequency can be freely adjusted within the 5-15hz range according to the requirements of users.

RPLIDAR A2 Compared To Former Model

The RPLIDAR A2 adopts the low cost laser triangulation measurement system developed by SLAMTEC, which makes the RPLIDAR A2 has excellent performance in all kinds of indoor environment and outdoor environment without direct sunlight exposure. Meanwhile, before leaving the factory, every RPLIDAR A2 has passed the strict testing to ensure the laser output power meet the standards of FDA Class I.

APPLICATIONS

Obstacle Avoidance
Autonomous Mapping
Route Planning
Navigation

Specification

Model: RPLDIAR-A2
Distance Range: 0.15 - 6 m
Angular Range: 0-360 degree
Distance Resolution: <0.5 (0.15~1.5 meters)
<1% of the distance (All distance range)
Angular Resolution: 0.9degree
Sample Duration: 0.25 millisecond
Sample Frequency 4000Hz
Scan Rate: 10Hz
Weight: 340g

Documents

3D Models

Others

Parts List

RPLIDAR A2 - 360 Degree Laser Range Scanner x1
