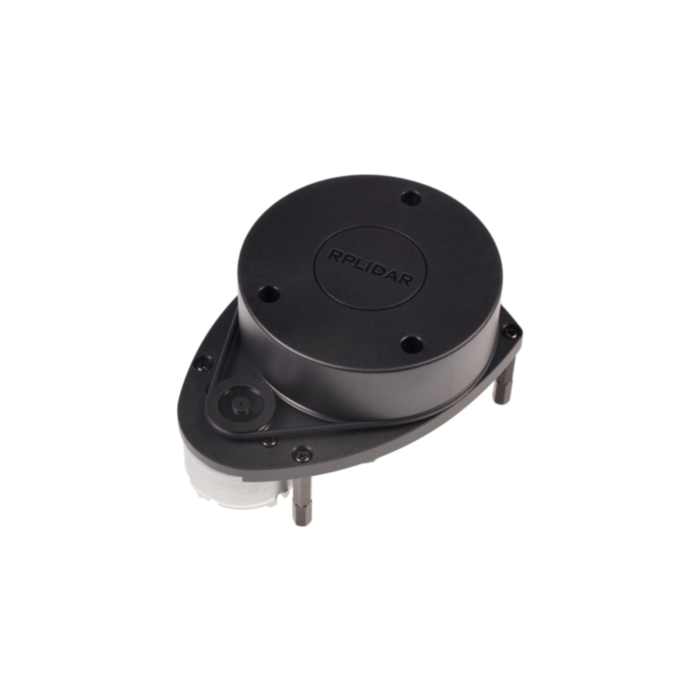

RPLiDAR A1M8-R6 360 Degree Laser Scanner Kit - 12M Range

SKU: SS114992561 Brand: Seeed Studio

RPLIDAR A1 is a low cost 360-degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. The system can perform a 360degree scan within a 6meter range....

$219.95 AUD, inc GST

$199.95 AUD, exc GST

Available with a lead time
Expect dispatch between May 29 and Jun 02

Quantity Discounts:

5+ $191.95 (exc GST)
10+ $185.95 (exc GST)

RPLIDAR A1 is a low cost 360-degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. The system can perform a 360degree scan within a 6meter range. The produced 2D point cloud data can be used in mapping, localization, and object/environment modeling.

RPLIDAR A1’s scanning frequency reached 5.5 Hz when sampling 360 points each round. And it can be configured up to 10 Hz maximum.

RPLIDAR A1 is basically a laser triangulation measurement system. It can work excellently in all kinds of indoor environments and outdoor environments without sunlight.

For your convenience, we made a table comparing different RPLiDARs so you can easily pick one that suits your project!

Features

Measures distance data in more than 8000 times/s
360 Degree Omnidirectional Laser Range Scanning
8000 times sample rate, the highest in the current economical LIDAR industry
OPTMAG Original Design, prolong the life-span
Configurable Scan Rate from 2-10Hz
Ideal for Robot Navigation and Localization
Plug and Play

Application Scenarios

Home service /cleaning robot navigation and localization
General robot navigation and localization
Smart toy’s localization and obstacle avoidance
Environment scanning and 3D re-modeling
General simultaneous localization and mapping (SLAM)

Specifications

Specification	Details
Dimensions	98.5mm x70mm x60mm
Weight	G.W 170g
Battery	Exclude
Distance Range	0.15 - 6m,White objects
Angular Range	0-360 Degree
Distance Resolution	<0.5mm
Angular Resolution	=1Degree
Sample Duration	0.5ms
Sample Frequency	2000~2010Hz
Scan Rate	1~10Hz,Typical 5.5Hz,

Part List

1 x RPLIDAR A1(PWM motor driver embedded
1 x USB Adapter
1 x RPLIDAR A1 communication cable

Documentations

This product is listed in:

Sensors>Distance
