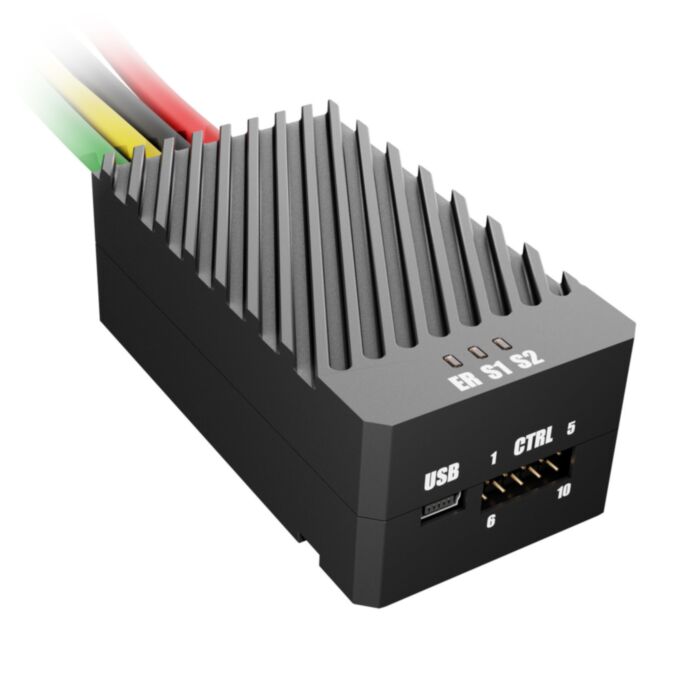

RoboClaw Solo 60A Motor Controller

SKU: GB-IMC410 Brand: goBilda

The RoboClaw Solo 60 A is an intelligent motor controller designed to control one brushed DC motor at 60 Amps continuous with up to 100...

$249.95 AUD, inc GST

$227.23 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 15th of Nov

Quantity Discounts:

5+ $223.82 (exc GST)

The RoboClaw Solo 60 A is an intelligent motor controller designed to control one brushed DC motor at 60 Amps continuous with up to 100 Amps peak. It can be controlled from USB, RC radio, PWM, TTL serial, analog and microcontrollers such as an Arduino or Raspberry Pi.

RoboClaw automatically supports 3.3 V or 5 V logic levels, travel limit switches, home switches, emergency stop switches, power supplies, braking systems and contactors. Power supplies can be used by enabling the built-in voltage clamping control feature. A built-in switching mode BEC supplies 5 VDC at up to 1.2 Amps for powering user devices.

Brushed DC motors can be controlled in open or closed loop using position or velocity control modes. RoboClaw features several built-in commands for controlling acceleration, deceleration, distance, speed, current sense, voltage limits and more. RC and analog control modes also include several user defined settings such as acceleration and decelerate speeds.

Dual quadrature encoders with up to 19.6 million pulses per second are supported and can be auto tuned using Ion Studio which is a free downloadable application. In addition, a wide range of sensor inputs including potentiometers and absolute encoders are supported. RoboClaw's closed loop functionality creates absolute control over speed, velocity and direction regardless of load changes.

RoboClaw incorporates several protection features including temperature, current, over voltage and under voltage limits. The protection features are self monitoring and protect RoboClaw from damage in any operating condition. Several user definable settings such as maximum current limit, maximum and minimum battery voltages are provided for more refined control.

RoboClaw's regenerative capabilities will charge a supply battery during slow down or breaking. Its advanced circuitry can change direction during full throttle without damage! RoboClaw also incorporates a LiPo cutoff mode to prevent battery damage.

Features:

Bridge Channels	Yes
3.3V Safe Outputs	Yes
5V Tolerant Inputs	Yes
Encoder Auto Tune	Yes
Thermal Protection	Yes
Current Sense	Yes
User Selectable Peak Current	Yes
Battery Protection	Yes
Regenerative Braking	Yes
Over Voltage Protection	Yes
Under Voltage Protection	Yes
Self Diagnostics	Yes
Position Control Mode	Yes
Velocity Control Mode	Yes
Control Methods	USB, RC, PWM, TTL serial, Analog and Microcontroller

Tech Tips:

Motion Studio Settings:

Arduino:

Raspberry Pi:

Downloads

Specs

Weight	126g
Motor Channels	1
Max Continuous Current per Channel	60A
Max Peak Current per Channel	100A
Max Voltage	34VDC
BEC	5 VDC @ 1.2A
Motor Compatibility	Brushed DC
Encoder Compatibility	Relative and Absolute
Motor Direction	Bidirectional
