RGB LED Strip Driver Shield v1.0

SKU: DFR0274

$19.34 AUD, inc GST
$17.58 AUD, exc GST

More Views

RGB LED Strip Driver Shield v1.0
19.34 AUD

SKU: DFR0274

$19.34 AUD, inc GST
$17.58 AUD, exc GST
1 reviews 0 5 4
In stock, with a short lead time. 2 units dispatch in 3 to 5 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 30th of Oct with Express Post within Australia.
Introduction

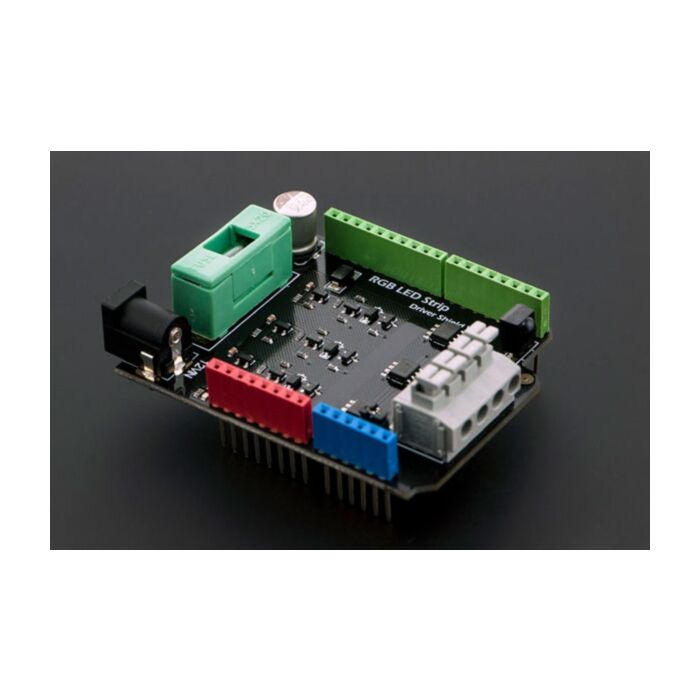

Want to program your RGB LED strip to be a bit more "rhythmic" or "unpredictive"? This RGB LED Strip Shield contains all the components you need to build a super cool RGB (or other three channel) LED project with your Arduino.

The shield has 3 outputs with pulse width modulation. Each can control any 12V load, at up to 3A. The shield has build-in IR receiver which allows the LED strip being controlled by an IR remote controller.  A buildin fuse protects the LED strip from over current or any shortage by any reasons. It cares your hard work.

This shield makes it possible to drive about 10 meter length RGB LED Strip with your Arduino processor, which almost require 10Amps(@12V) driving capability.

Note: Recommend to connect a 12v power source to the DC adater on the RGB Strip driver shield, which could powering the Arduino also and protect the system from overcurrent by fuse.

              Interactive Installation "Half Naked" made with RGB LED Strip and Driver Shield, image courtesy of Lei Ye

                                        A Look into the Interactive Installation "Half Naked", image courtesy of Lei Ye

Specification
  • Compatible with Arduino Uno,Mega,Romeo, etc
  • Compatible with 12V RGB LED Strip(Common Anode)
  • Recommend working power: 72W (2A per way)
  • Limited driving capability: 10 meter RGB LED Strip with max brightness
  • Support IR remote control
  • RGB LED Strip driving pins:
    • D9    -> Blue output
    • D10  -> Red output
    • D11 -> Green output
  • IR Receiver
    • D4  -> IR receiver pin
Shipping List
  • RGB LED Strip Driver Sheild   *1
Compatability
  • Arduino UNO R2/R3 or compatible
  • Arduino Mega 1280/2560
Documents
Documentation and Resources:

Product Comments


Customer Reviews

  1. Review by Danial verified purchaser
    Rating
    80

    Started using this straight away and is very easy to use. Stack and go, powering it is easy and safe for the arduino.
    I do wish it was set up on pins 3, 5, 6 as the ethernet shields use 10 and 11 also. But if there is a will there is a way to get around it
    Recommend this to anyone wanting to us 12v RGB led strips (Posted on 23/02/2016)
