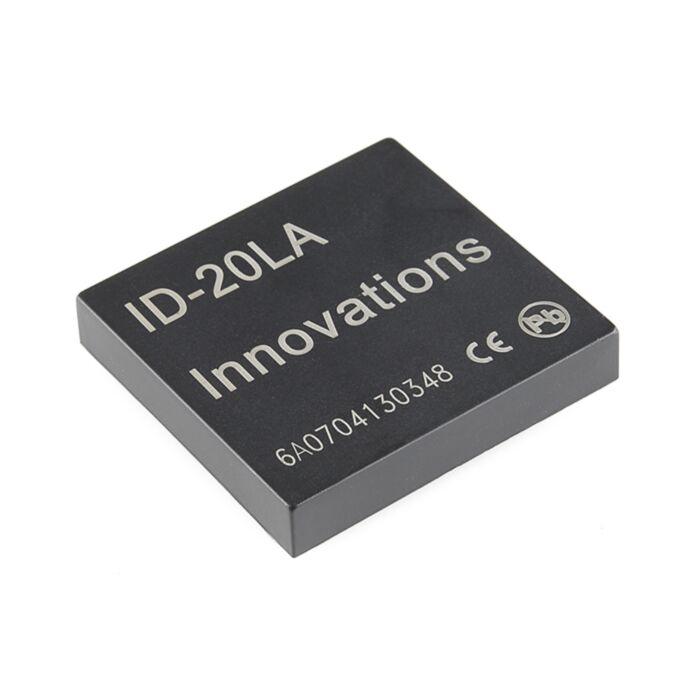

RFID Reader ID-20LA (125 kHz)

SKU: SEN-11828 Brand: Sparkfun

RFID (radio-frequency identification) is the wireless non-contact use of radio-frequency electromagnetic fields, for the purposes of identifying and tracking tags attached to objects. This is the ID-20LA, a very simple to use RFID reader module from ID Innovations. With a built in antenna, the only holdup is the 2mm pin spacing. Power the module, hold up a 125kHz card, and get a serial string output containing the unique ID of the card.

$62.70 AUD, inc GST

$57.00 AUD, exc GST

Quantity Discounts:

6-12 $55.29 (exc GST)
12+ $54.15 (exc GST)

Out of Stock

Note: The new ID-20LA is essentially the same as the older ID-20, but has a lower input voltage.

Features:

2.8 - 5V supply
125kHz read frequency
EM4001 64-bit RFID tag compatible
9600bps TTL and RS232 output
Magnetic stripe emulation output
Read range of 180mm

Dimensions: 38x40x7mm
