RFID Module - SM130 Mifare (13.56 MHz)

SKU: SEN-10126

$50.37 AUD, inc GST
$45.79 AUD, exc GST

More Views

RFID Module - SM130 Mifare (13.56 MHz)
50.37 AUD

SKU: SEN-10126

$50.37 AUD, inc GST
$45.79 AUD, exc GST
Shipping Offer
OR

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

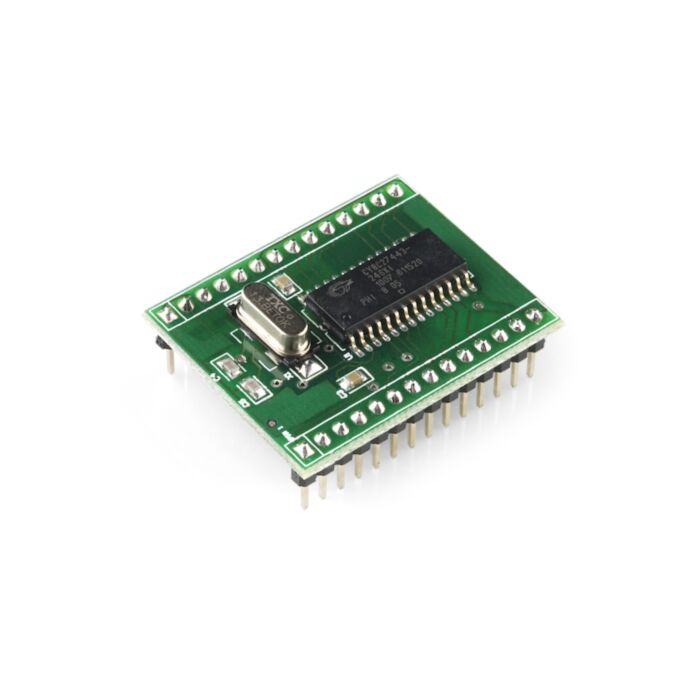

The SMB130 is a 28 pin DIP module that includes all necessary components for a 13.56 MHz RFID Mifare, aside from a PCB antenna.

The module communicates over UART or I2C with simple protocols. It also has 2 general purpose inputs and 2 general purpose outputs for switches, relays, etc.

Check below for Mifare RFID tags.

Note: You will need an antenna or evaluation board for this module to work. Check the related product below.

Features:

  • UART interface up to 115200bps
  • I2C interface up to 400 KHz
  • Complete read/write module excluding antenna
  • 5V supply
  • 2 general purpose outputs
  • 2 general purpose inputs

Documents:

Documentation and Resources:
