Red Pitaya STEMlab 125-14 FPGA Starter Kit

SKU: SS102060145 Brand: Seeed Studio

The STEMlab 125-14 Starter Kit is a starter kit for developing FPGA applications that includes a Red Pitaya STEMlab 125-14 board, SD card, Ethernet cable...

$834.95 AUD, inc GST

$759.05 AUD, exc GST

Quantity Discounts:

3-6 $728.68 (exc GST)
6+ $705.91 (exc GST)

Out of Stock

Features

Flexible Development Opportunities: Explore limitless FPGA Applications like oscilloscopes, spectrum analyzers and more
Versatile Compute & FPGA with the STEMLAB125-14 Main Board

Dual-Core ARM Cortex-A9 MPCore
Xilinx Zynq 7010 FPGA
512MB RAM, MicroSD Storage (Up to 32GB)
Ethernet, USB, WiFi (Dongle required, not included)

Basic Accessories for Getting Started: 16GB, Class 10 SD Card, 1m Ethernet Cable, 5V2A Power Supply
Ready for Deployment: CE, FCC Certified

The Red Pitaya STEMLab 125-14 Starter Kit contains a basic set of tools to start developing with the included Red Pitaya STEMLab 125-14 board. The board features a dual-core ARM® Cortex® A9 and Xilinx Zynq 7010 FPGA MCU, offering both fast and slow analog I/O. The STEMLab 125-14 has 14-bit input/ output channels for highly accurate measurement results, and is suitable for use in professional environments such as industrial control systems or smart city controllers. It can be used as desired for various electronics applications as an oscilloscope, spectrum analyzer, LCR Meter, and more. In addition, you can explore free, open-source applications contributed by the community on the Red Pitaya Marketplace.

Applications

Oscilloscope
Industrial PID Controller
Signal Generator
Spectrum Analyzer
Bode Analyzer
LCR Meter

Specifications

Specification

Details

Processor

FPGA

System Memory

Connectivity

Channels
2

Sample Rate
125MS/s

ADC Resolution
14 bit

Full Scale Voltage Range
± 1V / ± 20V

Input Coupling
DC

Bandwidth
DC- 60MHz

Input Impedance
1 MO

Channels
2

Sample Rate
125MS/s

ADC Resolution
14 bit

Full Scale Voltage Range
± 1V

Load Impedance
50O

Shortcut Protection
Yes

Typical Raising / Falling Time
2V / 10ns

Bandwidth
DC - 60MHz

Digital IOs
16

Analog Inputs
4 Channels, 0-3.5V 12 bit

Analog Outputs
4 Channels, 0-1.8V 12 bit

Communication Interfaces
I2C, UART, SPI

Available Voltages
+5V, +3.3V, -4V

Synchronization

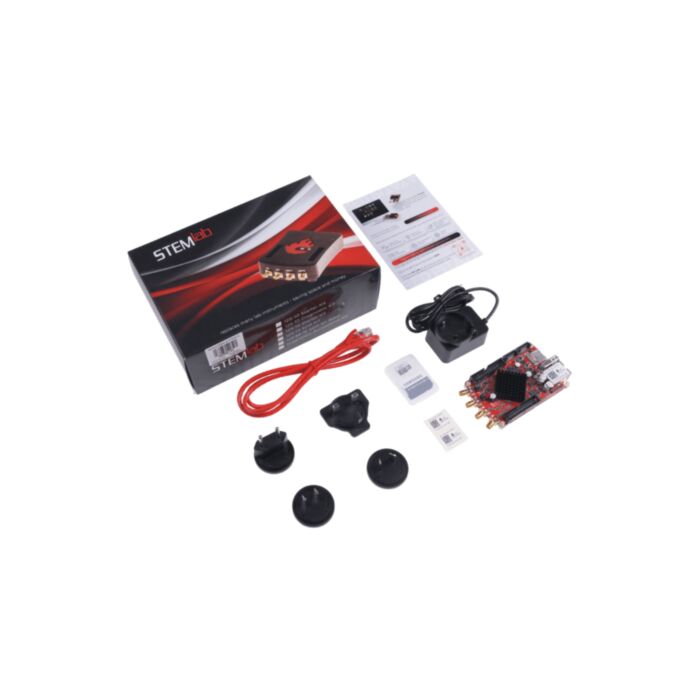

Part List

1 x Red Pitaya STEMlab 125-14 board
1 x Micro-SD Card (16GB, class 10)
1 x Micro-SD Card Adapter
1 x Ethernet cable (1m)
1 x International Power Adapter (5V, 2A)

Documentations

Quick Start Guide
