Realtek RTL8720DN 2.4G/5G Dual Bands Wireless and BLE5.0 Combo Module
Quantity Discounts:
- 10-25 $7.90 (exc GST)
- 25+ $7.65 (exc GST)
Out of Stock
Sign up to get notified when it's available to order.
Restrictions apply to this RF Equipment for use in Australia:
- Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz (check the product description for compatible frequency ranges).
- If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.
For use in other locations around the world:
- Follow region-specific frequency spectrum rules.
A declaration of use will need to be submitted during checkout.

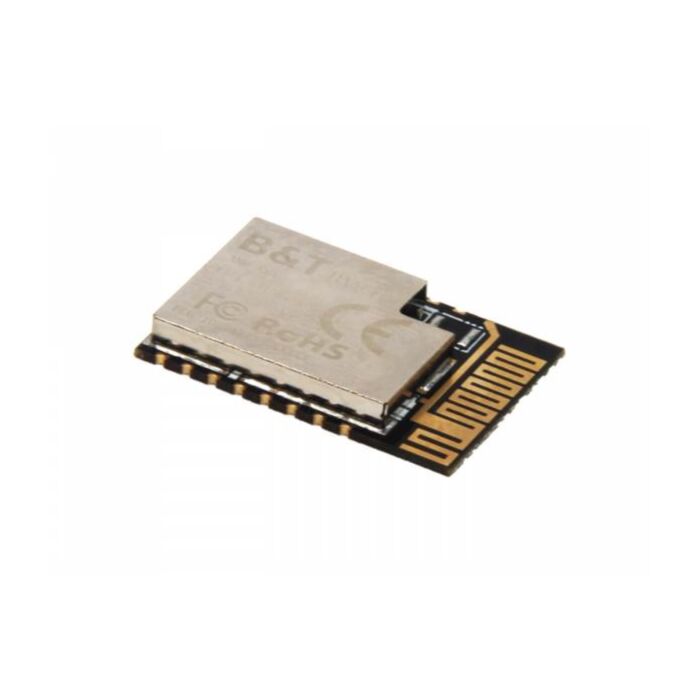

Realtek RTL8720DN is a WiFi and Bluetooth module that has dual bands for WiFi communication. It is worth saying that this little module can support WiFi 5G and Bluetooth Low Energy 5.0 as well. This WiFi and Bluetooth module is a highly integrated WiFi and Bluetooth module with the main chip RTL8720DN, it can be regarded as an SoC for the WiFi and Bluetooth application with typical SBCs.
Except for the main chip, the Realtek8720DN module consists of a high-performance MCU named KM4, a low power MCU named KM0, WLAN (802.11 a/b/g/n) MAC, a 1T1R capable WLAN baseband, RF, Bluetooth, and peripherals. An inner antenna and many interfaces are available in this little WiFi and Bluetooth module.
Features
- WiFi and Bluetooth module.
- Support both WiFi 2.4G and WiFi 5G with protocol 802.11 a/b/g/n 1x1 from 20/40 MHz up to MCS7.
- Support WiFi low power mode.
- Support Bluetooth (BLE) 5.0.
Peripheral Interfaces
- 1 common ADC interface
- 2 log UART with standard baud rate support
- 1 I2C interfaces are shared with the PWM interfaces
- 1 SPI interfaces are shared with the PWM interfaces
- 4 PWM interfaces
- All of the above interfaces can be used as GPIO
Applications
- BLE beacon
- Industrial wireless control
- Bluetooth gateway
- Wearable electronic devices
- Security ID tags
- Smart home
Specifications
Hardware Features
- Model: BW16
- Antenna Type: IPEX connect or PCB Antenna
- Major Chipset: RTL8720DN
- Power Supply: 3.3±5% V
- Dimension: 24 .0*16.0* 3.0mm (LxWxH) ±0.2mm
WIFI Wireless Features
- Wireless Standards: IEEE 802.11 a/b/g/n
- Frequency Range: 2.412-2.484GHz & 5.180-5.825GHz
- Data Rates: 802.11a : 6,9,12,18,24,36,48,54Mbps / 802.11b : 1,2,5.5,11Mbps /802.11g : 6,9,12,18,24,36,48,54Mbps
- Data Rates: 802.11n : MCS0--MCS7 @ HT20 /2.4GHz and 5GHz band
- Data Rates: 802.11n: MCS0--MCS7 @ HT40 /2.4GHz and 5GHz band
- Modulation Technique: DSSS (DBPSK, DQPSK, CCK) / OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
- Work Mode: AP, Station, AP/Client
Others
- Operating Temperature: -20C~85C
- Storage Temperature: -40C~125C
- Operating Humidity: 10%~90% (non-condensing)
- Storage Humidity: 5%~90% (non-condensing )
- Certification: RoHS compliance?FCC?CE?SRRC
Bluetooth Wireless Features
- Wireless Standards: Bluetooth5.0 BLE
- Frequency Range: 2.402GHz -2.480GHz
- Receiver Sensitivity: -92dBm
- Transmit Power: 7±2dBm
