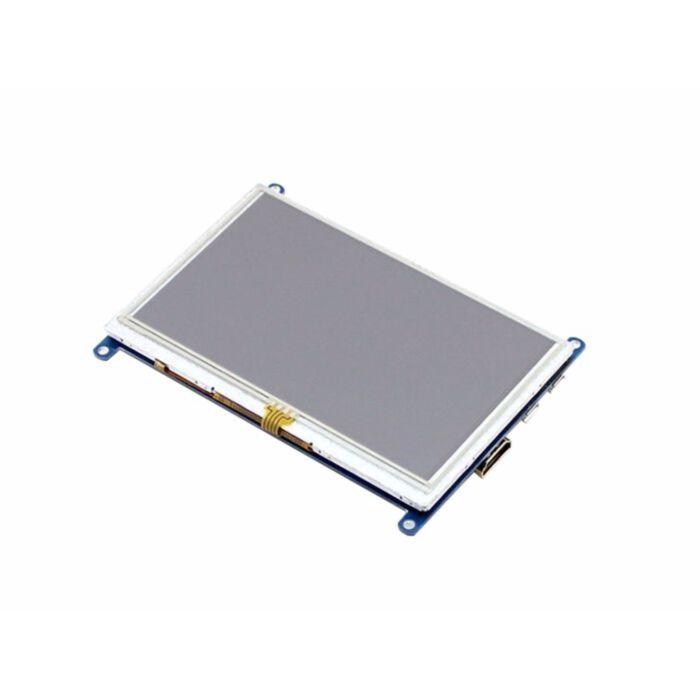

Raspberry Pi HDMI LCD (5 inch) (Seeed Studio)

SKU: SS114990834

$111.05 AUD, inc GST
$100.95 AUD, exc GST

More Views

Raspberry Pi HDMI LCD (5 inch) (Seeed Studio)
111.05 AUD

SKU: SS114990834

$111.05 AUD, inc GST
$100.95 AUD, exc GST
0 units ship today
Contact us if you need this product urgently


Raspberry Pi HDMI LCD (5 inch) is a low-cost 5 inch Resistive Touch Screen LCD, HDMI interface, designed for Raspberry Pi for Raspberry Pi.


  • 800×480 high resolution, touch control

  • Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable)

  • Drivers provided (works with your own Raspbian/Ubuntu directly)

  • HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)

  • Back light control to lower power consumption

  • High quality immersion gold surface plating

If you want to purchase Raspberry Pi HDMI LCD (10.1 inch) or Raspberry Pi HDMI LCD (7 inch), Please click the link.


PIN NO.SYMBOLDESCRIPTION
1, 173.3VPower positive (3.3V power input)
2, 45VPower positive (5V power input)
3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24NCNC
6, 9, 14, 20, 25GND
Ground
19TP_SISPI data input of Touch Panel
21TP_SOSPI data output of Touch Panel
22TP_IRQTouch Panel interrupt, low level while the Touch Panel detects touching
23TP_SCKSPI clock of Touch Panel
26TP_CSTouch Panel chip selection, low active



Please visit the wiki page for more info about this product.


  • 5inch HDMI LCD x 1

  • HDMI connector x 1

  • Touch pen x 1

  • RPi screws pack (4pcs) x 1

  • DVD × 1




Documentation and Resources:
