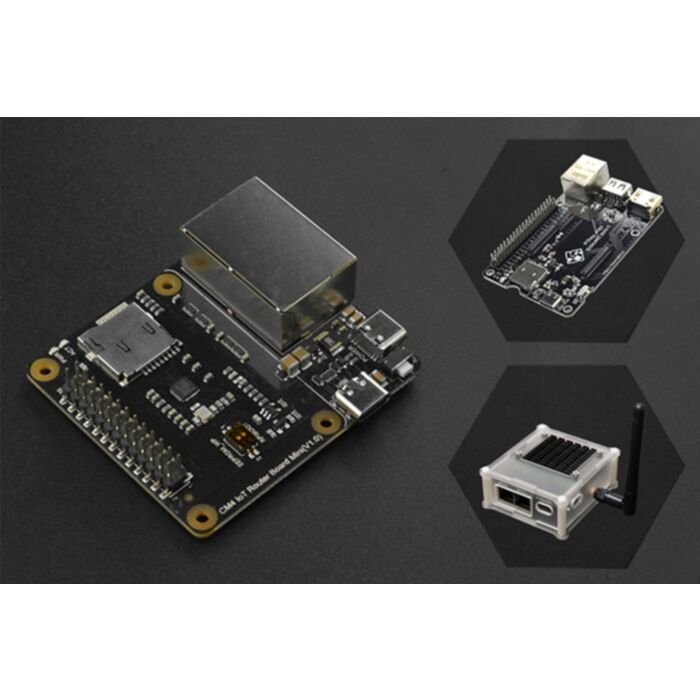

Raspberry Pi CM4 IoT Router Carrier Board Mini with Case and PiTray mini

SKU: DFR0767-2 Brand: DFRobot Guides (1)
Compute Module 4 IoT Router Carrier Board Mini brings Raspberry Pi CM4 two full-speed gigabit network ports and offers better performance, lower CPU...
$134.95 AUD, inc GST
$122.68 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 04

Quantity Discounts:

  • 5-10 $117.77 (exc GST)
  • 10+ $114.09 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Note: This kit includes Raspberry Pi Compute Module 4 IoT Router Carrier Board MiniAcrylic Case with Heatsink for CM4 IoT Router Carrier Board Mini and PiTray mini for Raspberry Pi Compute Module 4.

Compute Module 4 IoT Router Carrier Board Mini is an internet expansion board based on the Raspberry Pi Compute Module 4. When connecting with a gigabit network card via PCle, it brings Raspberry Pi CM4 two full-speed gigabit network ports and offers better performance, lower CPU usage, and higher stability for a long time work compared with a USB network card. Besides, with a mini size of 55 x62mm, the board still retains the characteristic GPIO pin header of Raspberry Pi, which makes it applicable for connecting other actuators, sensors, and smart cooling fan. Furthermore, there is also a USB2.0 interface that can be connected to mobile hard drives, printers, WIFI modules, LTF modules, etc.

Compute Module 4 IoT Router Carrier Board Mini now provides OpenWRT open-source router system. After a simple setup, it can be used as a router. It is also compatible with Raspberry OS, Ubuntu Server and other Raspberry Pi systems.

The powerful performance of BCM2711 4 core 1.5GHz Cortex-A72 and the rich software support in the Raspberry Pi community make this board a solid foundation for building high-performance gateways, smart routers, and home IoT platforms. It can also be connected to peripherals and used as a mini-NAS, wireless network bridge, or LTE Internet terminal.

Supporting case will be released soon.

The board-socket of CM4 is fragile, please align the direction and then press it down. It is recommended not to repeatedly plug and unplug the CM4 module.

Make sure the CM4 installation direction is correct before powering up.

Connect Diagram

Dimension

Note:

The CM4 Compute Module is not included.

Accessory:

Specification

  • Compatible Module: Raspberry Pi Compute Module 4 series
  • Ethernet:

            ETH1: Compute Module 4 Built-In

            ETH2: PCI Express 1000BASE-T NIC

  • USB:

            1x USB-C: Power only

            1x USB-C: USB 2.0 High Speed

  • Storage Card: microSD slot (Only modules without eMMC supported)
  • GPIO: 26Pin GPIO compatible with Raspberry Pi
  • Power Supply: USB-C 5V/3A
  • Operating Temperature: 0°C ~ 80°C
  • Dimension: 55x62mm/2.17x2.44”
  • Documents
  • Product wiki
  • Dimension Figure
  • V1.0 model (include case)
  • Parts List

  • Raspberry Pi Compute Module 4 IoT Router Carrier Board Mini x1
  • Acrylic Case with Heatsink for Raspberry Pi CM4 IoT Router Carrier Board Mini x1
  • PiTray mini for Raspberry Pi Compute Module 4 x1
