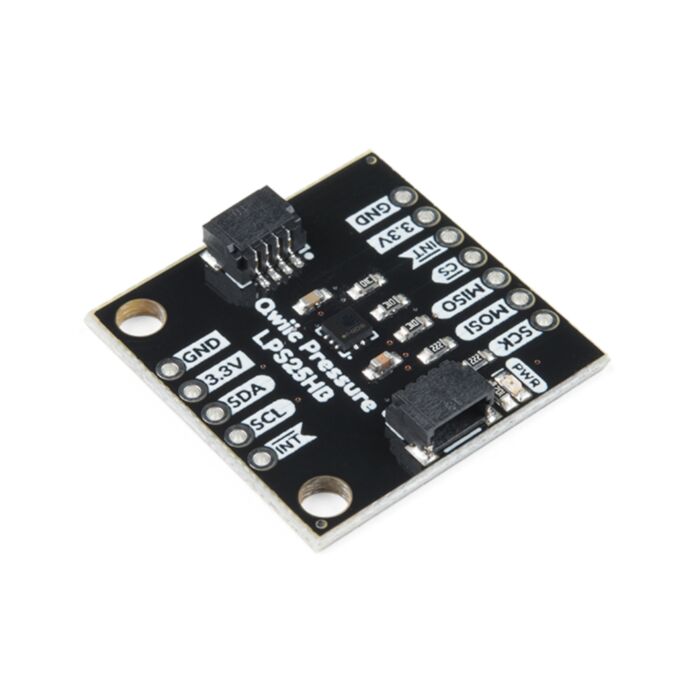

Qwiic Pressure Sensor - LPS25HB

SKU: SPX-14767 Brand: Sparkfun

Retired Product

Replaced by: SEN-21221

This product has been replaced by: SEN-21221
This product is no longer available. This page is only for reference.

The LPS25HB is an absolute pressure sensor which means that it has an internal vacuum as a reference. (As opposed to differential and gage sensors, see this description by Honeywell for more info) Absolute pressure sensors are often used as altimeters however they can be seen in other applications like the Robotic Finger Sensor v2.

You can use this absolute pressure sensor to inform a drone autopilot of altitude, make a personal weather station, or maybe even help test someone’s lung function! As part of the Qwiic system adding more capabilities like data logging with the Qwiic OpenLog is a cinch!

The LPS25HB is the newest version of the LPS25H by STMicroelectronics featuring the widest range of sensing pressures (26 kPa to 126 kPa) and very high precision (as low as 1 Pa RMS, which equates to approximately 8 centimeters of air at sea level). Other features such as the 25 Hz update rate and durability to withstand nearly 2.5 MPa over-pressure make this a great choice for absolute pressure sensor. Additionally the LPS25HB comes in a stylish plastic IC package, as opposed to the standard metal casing seen on most other pressure sensors.

In addition to the Qwiic connectors this sensor breakout exposes the I2C and SPI lines as plated through hole (PTH) connections on either side. SPI access will allow for even faster communication with the sensor (up to 10 MHz!)

We do not plan to regularly produce SparkX products so get them while they’re hot!

Experimental Product: SparkX products are rapidly produced to bring you the most cutting edge technology as it becomes available. These products are tested but come with no guarantees. Live technical support is not available for SparkX products. Head on over to our forum for support or to ask a question.

Features

260 to 1260 hPa absolute pressure range
High-resolution mode: 0.01 hPa RMS at 24 bits
Safe at up to 20x maximum measurement pressure
Internal 16 bit temperature sensor
Output rates 1, 7, 12.5, and 25 Hz
3.3V operation
4 uA current consumption in low-resolution mode (remove power LED first!)

Documents

Datasheet
Schematic
Eagle Files
Arduino Library
To get the latest files please visit the GitHub repo
