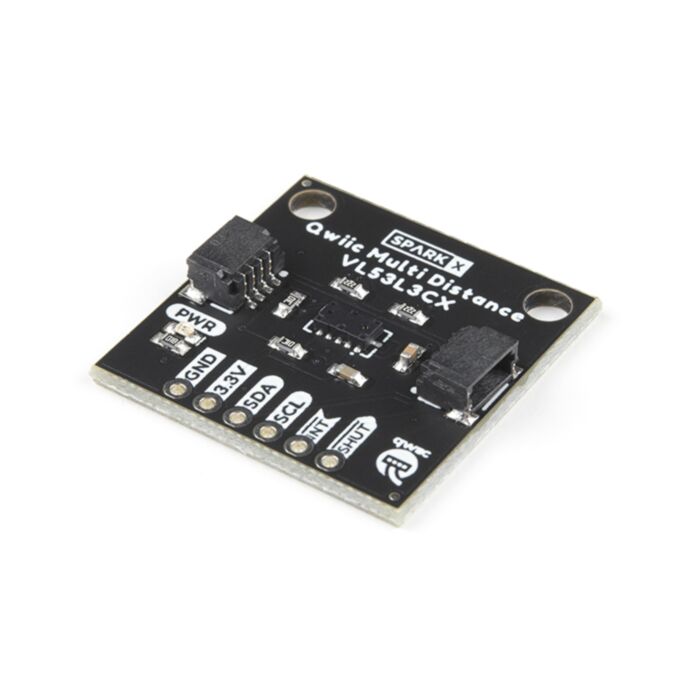

Qwiic Multi Distance Sensor - VL53L3CX
Retired Product
Replaced by: SEN-18642This product is no longer available. This page is only for reference.
The VL53L3CX is an awesome ToF (Time of Flight) range finder from STMicroelectronics, who brought us the venerable VL53L1X. It shares the same diminutive form factor as its predecessor but has learned a cool new trick: Multi-object detection! With some very fancy algorithms, the VL53L3CX is able to detect different objects within the field of view with depth understanding, something that isn't very common in laser range finders. The VL53L3CX has a field of view of about 25° and is able to detect objects up to 3 meters away, making it ideal for robotics, IoT, and smart lighting applications.
Our Qwiic Multi Distance Sensor breakout provides a simple, solder-free way to prototype using this tiny sensor. If you want to solder, however, we have also provided 0.1" headers for the power, I²C, interrupt, and shutdown pins.
No Arduino library is available for the VL53L3CX as of yet, however a full set of C and Linux software drivers are available from STMicroelectronics.
Note: CLASS 1 LASER PRODUCT CLASSIFIED IEC 60825-1 2014.
Experimental Product: SparkX products are rapidly produced to bring you the most cutting edge technology as it becomes available. These products are tested but come with no guarantees. Live technical support is not available for SparkX products. Head on over to our forum for support or to ask a question.Features
- Up to 300 cm+ detection with full field of view
- Immune to cover glass cross-talk and fingerprint smudge at long distance
- Short distance, high accuracy linearity
- Multi target detection and distance measurement
- Typical full FoV: 25°
- I²C interface (up to 1 MHz)
Documents
