Quad Alphanumeric Display -Yellow-Green 0.54 Digits w/ Backpack

SKU: ADA2159

$18.50 AUD, inc GST
$16.82 AUD, exc GST

More Views

Quad Alphanumeric Display -Yellow-Green 0.54 Digits w/ Backpack
18.5 AUD

SKU: ADA2159

$18.50 AUD, inc GST
$16.82 AUD, exc GST
OR

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

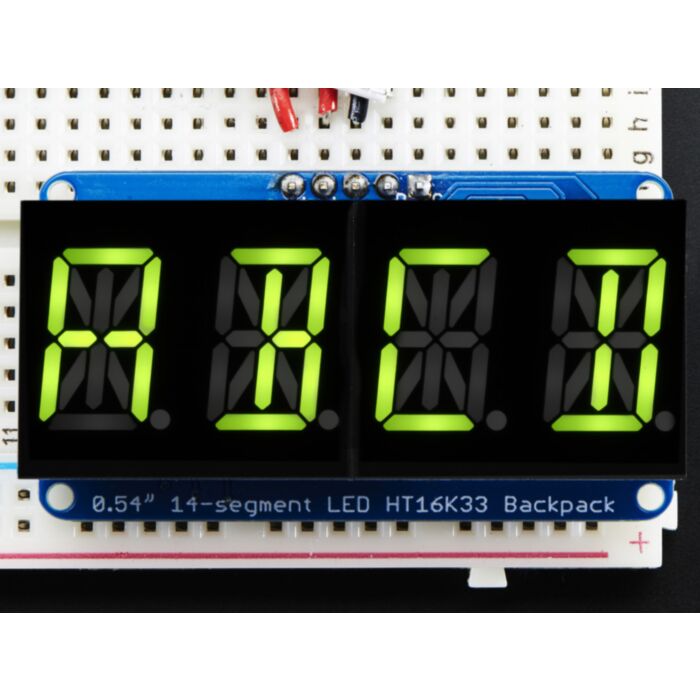

Display, elegantly, 012345678 or 9! Gaze, hypnotized, at ABCDEFGHIJKLM - well it can display the whole alphabet. You get the point. This is a nice, bright alphanumeric display that shows letters and numbers in a beautiful yellow-green hue. It's super bright and designed for viewing from distances up to 23 feet (7 meters) away. Digits have seven white segments on a black surface and Adafruit give you a set of two alphanumeric displays as well as a driver board so you can make a clock or a four letter word.

Like Adafruit's other LED backpacks, these are end-to-end stackable and by soldering the address jumpers on the back you can have up to 8 backpacks all sharing the same two I2C wires!

This product comes with:

A bit of soldering is required to attach the matrix onto the backpack but its very easy to do and only takes about 5 minutes. Of course, in classic Adafruit fashion, We also have a detailed tutorial showing you how to solder, wire and control the display. If you've been eying alphanumeric displays but hesitated because of the complexity, this is the solution you've been looking for!

Click here for the version that's just the alphanumeric displays! (no backpack)


Technical Details

Alphanumeric Display Dimensions:

  • 21mm x 25mm x 7mm / 0.8" x 1" x 0.3"
  • Height w/ Pins: 14mm / 0.6"
  • Weight: 4.7g

Backpack Dimensions:

  • 28mm x 51mm x 4mm / 1.1" x 2" x 0.2"
  • Weight: 5.5g

EagleCAD PCB files, datasheets, Fritzing objects and more in the tutorial

Documentation and Resources:
