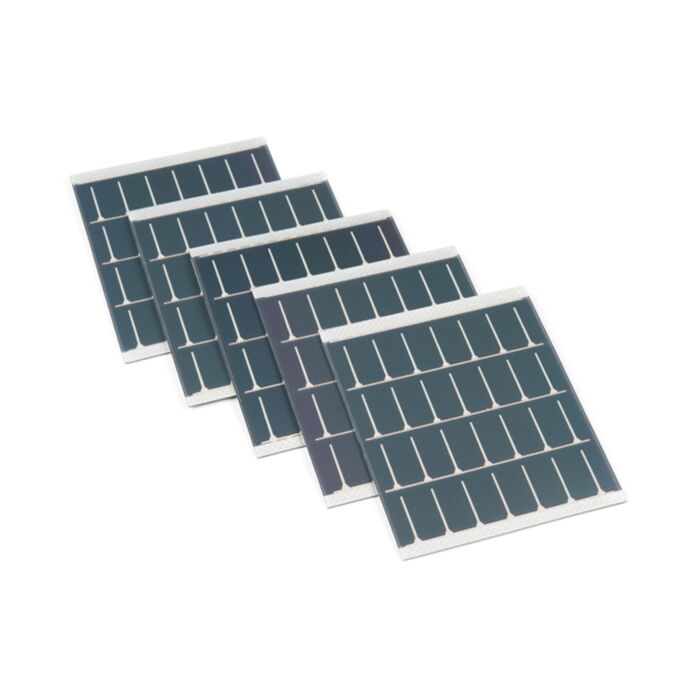

PowerFilm Solar Panel - [email protected] w/PSA & Kynar (5 Pack)

SKU: PRT-14800 Brand: Sparkfun

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

Did you know you have a practically unlimited source of energy, half a day, fully available to power your project? This five pack of PowerFilm Solar Panels are lightweight, paper thin, power solutions protected by being sandwiched in between PSA and Kynar polymers that can be easily integrated with your electronics to provide you with solar recharging or direct powering methods!! Even while bending and manipulating this solar panel, you will still be able to pull your full allotment of power from it.

These specific panels are each capable of 50mA at 4.8V which equates to about 0.2W of power. To incorporate these sturdy solar panels into your project simply melt the PSA and Kynar protecting the two power rails on the opposite sides of the array with your iron, then simply solder on your desired cables, leads, or another connection medium.

Please be aware that these solar panels do not have UV-stabilized surfaces, but are suitable for intermittent outdoor use.

Includes

5x PowerFilm Solar Panel - [email protected] w/PSA & Kynar

Features

Power: 0.24W
Operating Voltage: 4.8V
Operating Current: 50mA
Dimensions: 3.5in x 2.8in (88.9mm x 71.1mm)
Weight: 4.75g

Note: Each of these values are for the individual panels in this pack.

Documents

Set-Up Instructions
