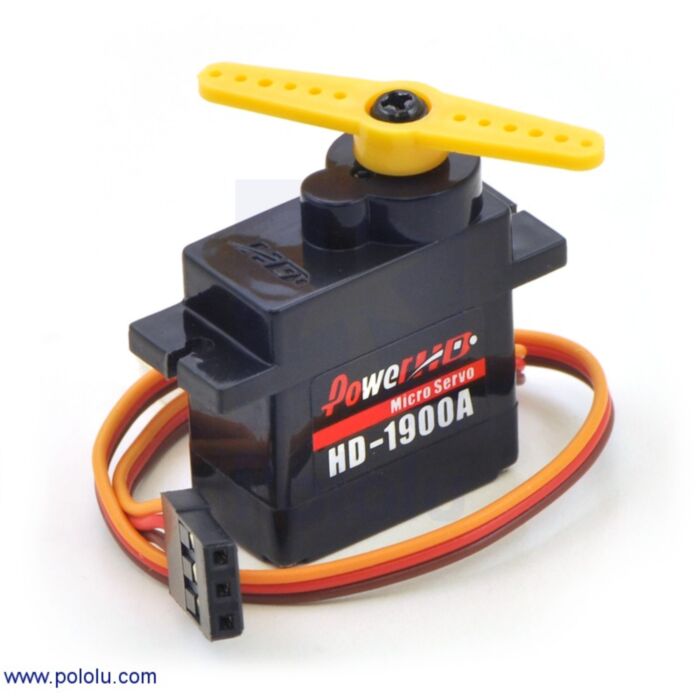

Power HD Micro Servo HD-1900A

SKU: POLOLU-1050 Brand: Pololu
The HD-1900A analog servo from Power HD is a great general-purpose micro servo at a great price. Servo horns and associated hardware are included. Key specs at 6 V: 0.08 sec/60°, 21 oz-in (1.5 kg-cm), 9.0 g.
$13.45 AUD, inc GST
$12.23 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 2nd of Apr

Quantity Discounts:

  • 10-25 $11.86 (exc GST)
  • 25+ $11.62 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

An example of hardware included with the Power HD micro servo HD-1900A. Actual hardware might vary.

Power HD micro servo HD-1900A with extra-long servo horn.

This is a great general-purpose actuator for tiny mechanisms. The lead is terminated with a standard “JR”-style connector, which is Futaba-compatible. Mounting screws and an assortment of servo horns is included with this servo. The picture above shows an example of this included hardware (hardware might vary). You can find more information about this servo under the specifications tab and in its datasheet (187k pdf).

This servo is very similar in size, weight, and performance to the FEETECH FS90 micro servo and FEETECH FS90R micro continuous rotation servo, the latter of which offers continuous rotation speed control as opposed to limited-range position control.

Note that, as with most hobby servos, stalling or back-driving this servo can strip its gears.

People often buy this product together with:

Shrouded Box Header: 2×3-Pin, 0.100" (2.54 mm) MaleShrouded Box Header: 2×3-Pin, 0.100" (2.54 mm) Male
0.100" (2.54 mm) Breakaway Male Header: 1×40-Pin, Straight, Black0.100" (2.54 mm) Breakaway Male Header: 1×40-Pin, Straight, Black
6-Conductor Ribbon Cable with IDC Connectors 12"6-Conductor Ribbon Cable with IDC Connectors 12"

Dimensions

Size: 22.9 x 12.0 x 27.3 mm
Weight: 9 g

General specifications

Digital?: N
No-load current @ 6V: 140 mA
Stall current @ 6V: 830 mA
Speed @ 6V: 0.08 sec/60°
Stall torque @ 6V: 1.5 kg·cm
Speed @ 4.8V: 0.11 sec/60°
Stall torque @ 4.8V: 1.2 kg·cm
Hardware included?: Y
Lead length: 6 in
