|90×10mm wheel with tire removed.|

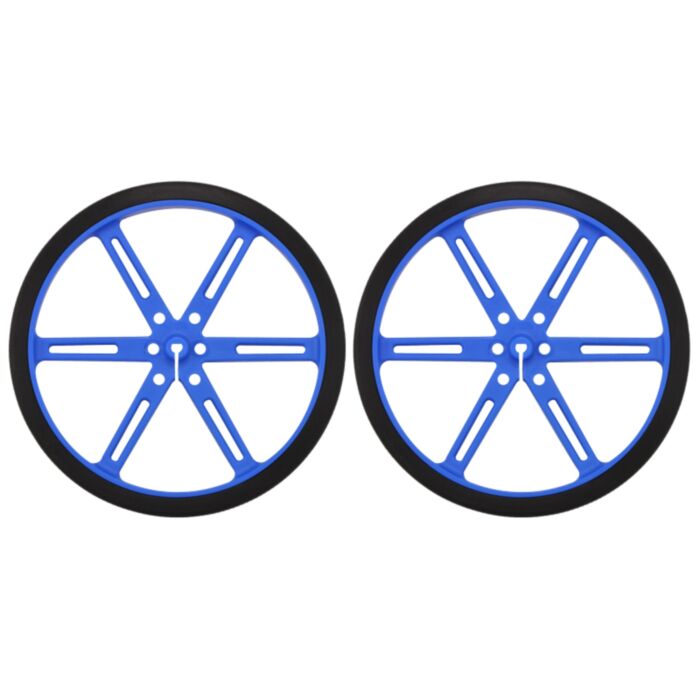

These wheels are designed to press-fit securely onto the 3mm D output shafts on many of Pololu's gearmotors, including Pololu's micro metal gearmotors and Pololu's plastic gearmotors with 3mm D-shafts. They also work with Pololu's 35:1 and 115:1 15.5D metal gearmotors, as well as with Pololu's selection of Solarbotics metal gear motors. The wheels have silicone tires and measure 90 mm (3.54″) in diameter. Six additional mounting holes for 4-40 screws make it possible to use the wheel with any of our universal mounting hubs. The slots in the six spokes allow additional accessories to be mounted to the wheel (e.g. decorations or parts of an encoder system).
Note: Pololu's high-traction sticky tires can be stretched to fit around the hubs of these 90×10 mm wheels, but the fit is not great, and you might need to use glue to keep on the hub.
The left picture below shows this wheel mounted to a 37D mm metal gearmotor with a universal mounting hub for 6mm shafts, and the right picture below shows this wheel mounted to a micro metal gearmotor.
Pololu have similar wheels available in different sizes and colors:
|Pololu wheels with 90, 80, 70, 60, and 32mm diameters.|
|Pololu wheels with 90, 80, 70, and 60mm diameters in three colors: blue, red, and yellow.|
Documentation and Resources:
