Pololu Universal Aluminum Mounting Hub for 8mm Shaft, M3 Holes (2-Pack)

SKU: POLOLU-2693 Brand: Pololu

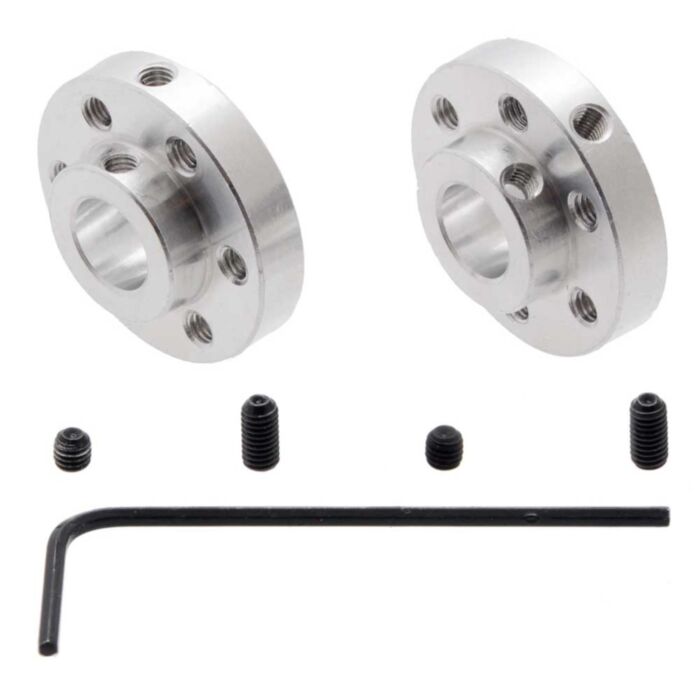

These universal aluminum mounting hubs allow you to mount custom wheels and mechanisms to 8 mm diameter motor shafts. The set includes two hubs, four M3 set screws for securing the hubs to motor shafts, and one 1.5 mm Allen wrench for use with the set screws. Each hub has six threaded mounting holes for M3 screws (not included).
$16.85 AUD, inc GST
$15.32 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 5th of Mar

Quantity Discounts:

  • 10-25 $14.85 (exc GST)
  • 25+ $14.55 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

These universal mounting hubs are designed to work with most 8 mm diameter shafts, including round shafts and “D” shafts. Each of the two included hubs has six mounting holes for M3 screws (not included), letting you mount custom wheels or mechanisms to your motors. The four included M3 hex set screws (two for each hub) allow secure coupling of shaft to hub, with the longer set screws intended for the deeper of the two set screw holes. A 1.5 mm hex wrench is included for use with the set screws. A dimension diagram of the hub is available under the resources tab.

People often buy this product together with:

Pololu Universal Aluminum Mounting Hub for 4mm Shaft, M3 Holes (2-Pack)Pololu Universal Aluminum Mounting Hub for 4mm Shaft, M3 Holes (2-Pack)
Pololu Universal Aluminum Mounting Hub for 5mm Shaft, M3 Holes (2-Pack)Pololu Universal Aluminum Mounting Hub for 5mm Shaft, M3 Holes (2-Pack)
Pololu Universal Aluminum Mounting Hub for 6mm Shaft, M3 Holes (2-Pack)Pololu Universal Aluminum Mounting Hub for 6mm Shaft, M3 Holes (2-Pack)

Dimensions

Size: 25.4 mm diameter × 9.2 mm thick
Weight: 6.7 g1
Shaft diameter: 8 mm
Mounting hole size: M32

Notes:

1
For a single hub only (with set screws).
2
This is also the size of the set screws.

File downloads

This product is listed in:

Hardware>Mounts & Hubs>Hubs & Clamps
