Pololu Stamped Aluminum L-Bracket for NEMA 14 Stepper Motors

Rating:

100% of 100

SKU: POLOLU-2257 Brand: Pololu

This black anodized aluminum bracket lets you securely mount typical NEMA 14-size stepper motors to your project. The bracket features several slots and...

$6.70 AUD, inc GST

$6.09 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

10-25 $5.85 (exc GST)
25+ $5.66 (exc GST)

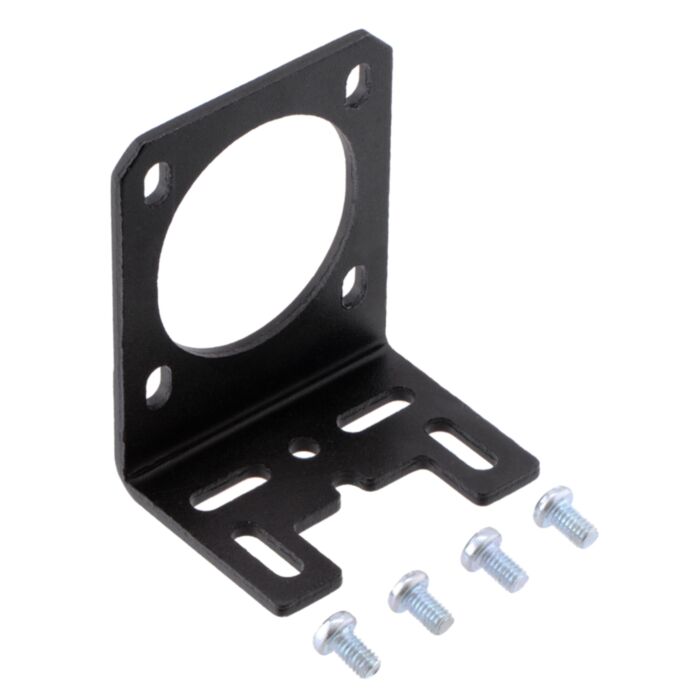

This lightweight (about 7.5 g) but strong bracket is made from 2mm-thick black anodized aluminum and is specifically designed to work with the typical faceplate mounting holes of NEMA 14 stepper motors. The slots through which the motor mounts to the bracket allow for 2 mm of play for fine-tuning position, and four 5 mm M3 screws are included for securing the motor to the bracket. These M3 screws work with all of the NEMA 14 stepper motors Pololu carry (items #1207, #1208, and #1209); different screws might be required when using this bracket with stepper motors from other suppliers. The other side of the bracket includes a variety of slots and holes that can be used with #4 and M3 screws.

Dimension diagram of the Pololu stamped aluminum L-bracket for NEMA 14 stepper motors. Units are mm over [inches].

This drawing is also available as a downloadable PDF (85k pdf).

People often buy this product together with:

Pololu Universal Aluminum Mounting Hub for 5mm Shaft, #4-40 Holes (2-Pack)

Stepper Motor: Bipolar, 200 Steps/Rev, 35×26mm, 7.4V, 0.28 A/Phase

Stepper Motor: Bipolar, 200 Steps/Rev, 35×28mm, 10V, 0.5 A/Phase

Dimensions

Weight:	7.5 g¹

Notes:

1: For bracket only (no screws).

File downloads

Dimension diagram of the Pololu stamped aluminum L-bracket for NEMA 14 stepper motors (85k pdf)
3D model of Pololu Stamped Aluminum L-Bracket for NEMA 14 Stepper Motors (1MB step)
