Pololu Mini Plastic Gearmotor Bracket Pair - Tall

SKU: POLOLU-2681 Brand: Pololu

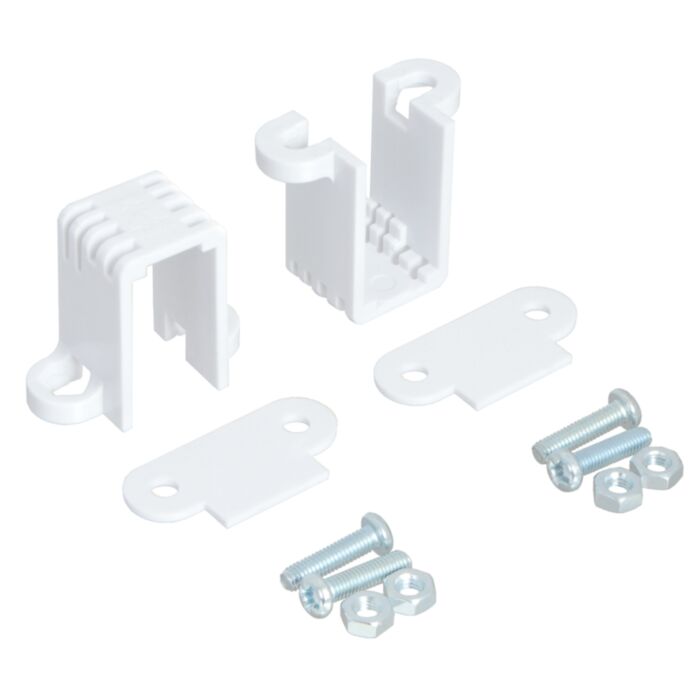

These tall brackets offer an easy and convenient mounting solution for Pololu's mini plastic gearmotors. The white plastic bracket securely clasps around the gearmotor, and the mounting tabs capture the nuts for easy installation. These brackets are sold in pairs, and each bracket comes with two M3 screws, two nuts, and a spacer.

Special Price $2.59 AUD, inc GST

Regular Price $4.70 AUD, inc GST

$2.35 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 30th of Apr

These plastic mounting brackets are specifically designed to work with Pololu's mini plastic gearmotors (with or without encoders). Both the offset and 90-degree configurations of the mini plastic gearmotors are compatible with these brackets. The brackets are sold in pairs, and four M3×12mm screws and M3 nuts are included (two for each bracket). In some orientations, the mini plastic gearmotors have a lip that causes the bracket to be raised off of the mounting surface; for those cases, two 1.25mm-thick spacer plates (one for each bracket) are also included. You can see the spacer being used in the two pictures below.

Pololu also offer a wide version of this bracket that allows for alternate mounting options that might be more appropriate for particular applications.

Note: When using this tall version of the bracket with one of the 90° Output mini plastic gearmotors (i.e. the setup in the left picture above), only Pololu's 60mm-diameter wheels (or smaller) will fit in the space between the output shaft and the mounting tab. The mounting tab will rub or interfere with larger-diameter wheels.

Dimensions

Dimension diagram of Mini Plastic Gearmotor Bracket – Tall. Units are mm over [inches].

This diagram is also available as a downloadable PDF (150k pdf).

People often buy this product together with:

Pololu Wheel 60×8mm Pair - Black

120:1 Mini Plastic Gearmotor, Offset 3mm D-Shaft Output, Extended Motor Shaft

Magnetic Encoder Pair Kit for Mini Plastic Gearmotors, 12 CPR, 2.7-18V

Dimensions

Weight:	1.4 g¹

General specifications

Color:	white

Notes:

1: For a single bracket only (no screws, nuts, or spacers). With a single spacer, it weighs an additional 0.4 g.

File downloads

Dimension diagram of Mini Plastic Gearmotor Bracket – Tall (150k pdf)
