Details for item #5627

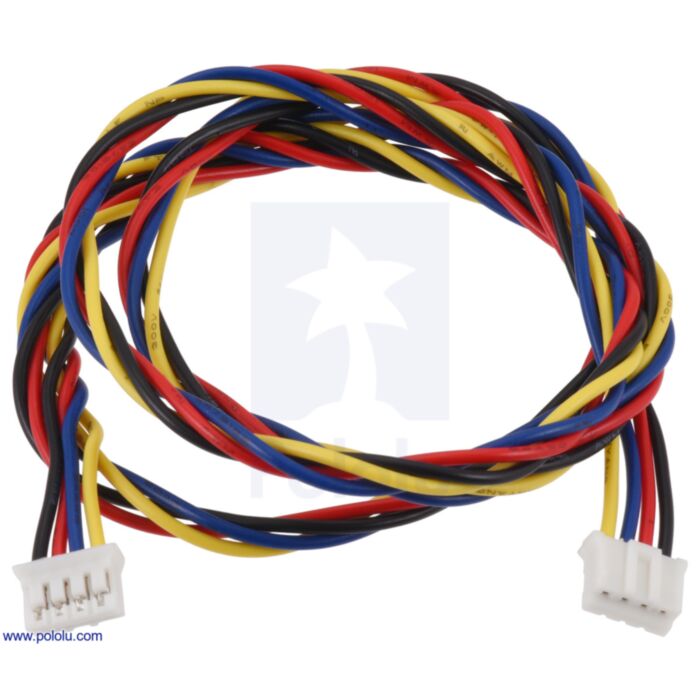

This 4-conductor, 63 cm (25") cable has 24 AWG wires and 4-pin female JST PH-type connectors (2mm pitch) on both ends.
|
JST PH-style cable family overview
Pololu's JST PH-style cables are available in a variety of pin counts and lengths. Double-sided versions are available with twisted wires and female JST PH connectors on both ends, and single-sided versions are available with a JST PH connector on one end and female crimp pins for 0.1" housings on the other.
These crimp pins, which are the same as those on Pololu's wires with pre-crimped terminals, are compatible with Pololu's assortment of crimp connector housings (see the pictures below for some examples) and work with standard 0.1" male headers. The crimp pins can be cut off if they are not needed, and remember that the double-sided cables can also be cut in half to get single-sided cables that are 5 cm, 8 cm, and 20 cm long.
The JST PH-style connector has a 2 mm pitch, and the cables are made from 24 AWG wires that conform to UL 1007. They are rated for 2 A and 100 V. For all versions in the following table, the black wire connects to pin 1 and the red wire connects to pin 2. The 4-pin cables are physically compatible with Adafruit’s STEMMA connectors, but note that the wire color order is different (Adafruit’s cables have the black and red wires on pins 4 and 3, respectively).
Dimensions
Pins: | 1×4 |
---|---|
Pitch: | 2 mm |
Length: | 63 cm |
Weight: | 10.5 g |
General specifications
Gender: | Female-Female |
---|---|
Wire gauge: | 24 AWG |
Current rating: | 2 A |
Voltage rating: | 100 V |
Connector: | JST PH-type |
Terminations & length: | JST PH to JST PH, 63 cm |
