A5984 Stepper Motor Driver Carrier, Fixed 1.5A@5V / [email protected], Blue Edition (Soldered Header Pins)

SKU: POLOLU-5345 Brand: Pololu

This version is item #5344 with soldered header pins, so no soldering is required to use it with an appropriate 16-pin socket or solderless breadboard. It...

Special Price $5.88 AUD, inc GST

Regular Price $7.83 AUD, inc GST

$5.35 AUD, exc GST

Special pricing ends 24 February 2025

* this special may end earlier than shown

Available with a lead time
Expect dispatch between Dec 09 and Dec 11

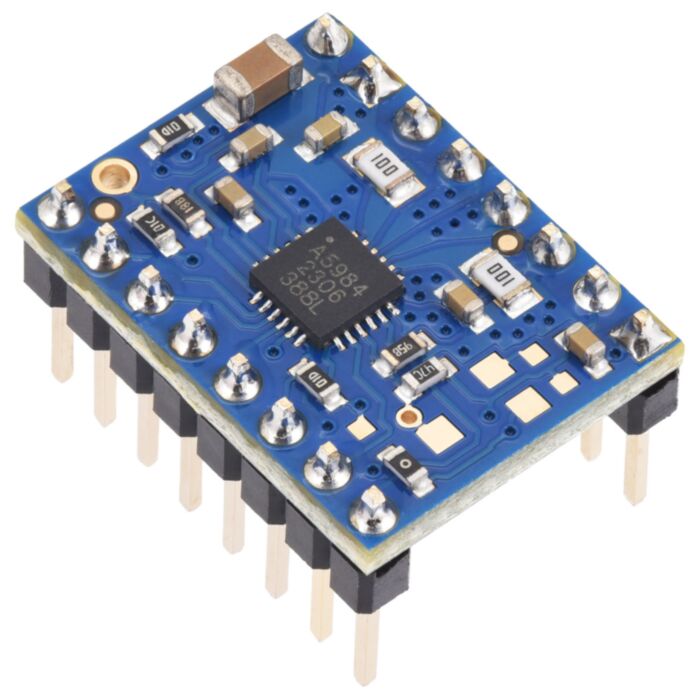

A5984 Stepper Motor Driver Carrier, Fixed 1.5A@5V / [email protected], Blue Edition (Soldered Header Pins).

A5984 Stepper Motor Driver Carrier, Fixed 1.5A@5V / [email protected], Blue Edition (Soldered Header Pins), top view.

This product is the A5984 carrier with a fixed current limit of 1.5 A (VDD = 5 V) or 1 A (VDD = 3.3 V). It can typically deliver phase currents up 1.2 A without a heat sink or forced air flow, and it is generally intended for 3.3 V applications, which results in a fixed current limit of 1 A. This version has soldered headers as shown in the pictures above, so no soldering is required to use it with an appropriate 16-pin socket or solderless breadboard. See the item #5344: A5984 Stepper Motor Driver Carrier, Fixed 1.5A@5V / [email protected], Blue Edition product page for more information about this driver.

Dimensions

Size:	0.6" × 0.8"
Weight:	2.5 g

General specifications

Current limit:	?fixed 1.5A@5V / [email protected]
Header pins:	soldered

Identifying markings

PCB dev codes:	md46b
Other PCB markings:	0J15026

This product is listed in:

Breakouts & Modules>Motor Drivers & Controllers>Stepper Motor Drivers
