Pololu 15.5D mm Metal Gearmotor Bracket Pair

SKU: POLOLU-1599

$6.23 AUD, inc GST
$5.66 AUD, exc GST

More Views

Pololu 15.5D mm Metal Gearmotor Bracket Pair
6.23 AUD

SKU: POLOLU-1599

$6.23 AUD, inc GST
$5.66 AUD, exc GST
1 reviews 0 5 5
In stock, with a short lead time. 406 units dispatch in 4 to 9 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Thu, 28th of Dec with Express Post within Australia.
Shipping Offer

Pololu 15.5D mm metal gearmotor bracket with a 15.5D mm metal gearmotor.
Pololu 15.5D mm metal gearmotor bracket with a micro metal gearmotor (pictured with M1.6 screws, which are not included).

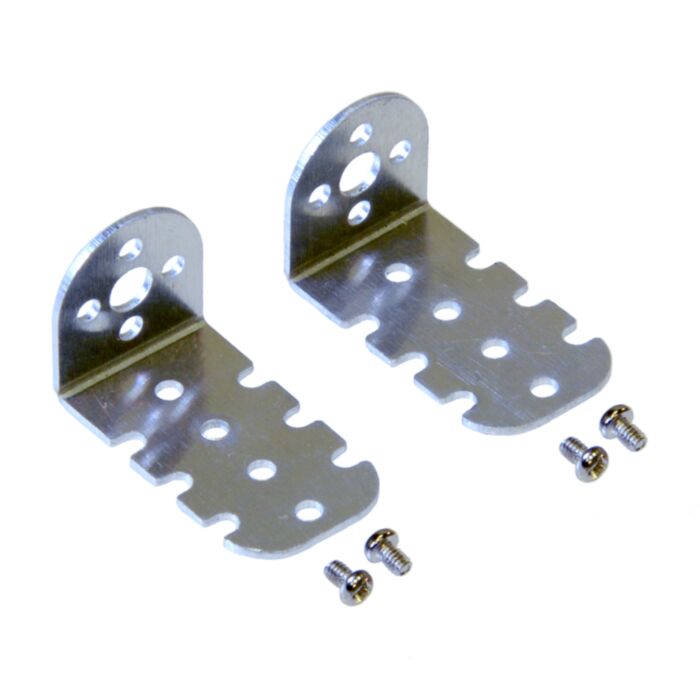

These light-weight brackets (about 2 g each) are specifically designed for the Pololu 35:1 and 115:1 15.5D mm metal gearmotors, as well as Pololu's 35:1 mini metal gearmotor. Each bracket features four mounting holes and six mounting slots (three along each edge) for M2 or #2-size screws, giving you a variety of mounting options. A total of four M2 screws (two for each bracket) are included for securing the motors to the brackets.

These brackets can also be used to mount Pololu's micro metal gearmotors, as shown in the adjacent picture, although this requires a pair of M1.6 screws for each bracket (not included).

Pololu's 3mm mounting hub works nicely with this bracket.

Mechanical drawing for the Pololu 15.5D mm metal gearmotor bracket. Units are mm over [inches].

This drawing is also available as a downloadable PDF (76k pdf).

Note: As of February 27, 2014, the thickness of these brackets has increased from 1 mm to 1.5 mm.

Documentation and Resources:

Product Comments


Customer Reviews

  1. Review by Oliver verified purchaser
    Rating
    100

    Useful to firmly fix the Pololu motors. Screws to fix the bracket base are not included. (Posted on 14/09/2016)
