Pixelblaze V3 Pico - WiFi LED Controller

SKU: ADA5943 Brand: Adafruit

Pixelblaze is a Wi-Fi Addressable LED Controller and Custom Pattern Editor, powered by an ESP32 module with 240Mhz dual-core processor for 'blazingly...

Special Price $57.02 AUD, inc GST

Regular Price $74.87 AUD, inc GST

$51.84 AUD, exc GST

Special pricing ends 05 August 2024

* this special may end earlier than shown

Out of Stock

Pixelblaze is a Wi-Fi Addressable LED Controller and Custom Pattern Editor, powered by an ESP32 module with 240Mhz dual-core processor for 'blazingly fast' pixel rendering capabilities.

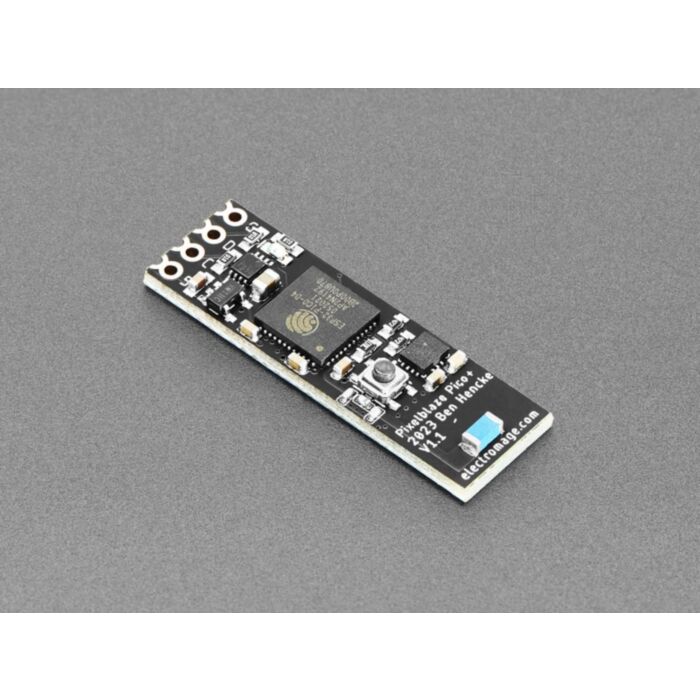

This is the Pixelblaze V3 Pico which is the smallest and most powerful LED controller. It's tiny but has the same ESP32 firepower as its larger sibling. Perfect for tiny or wearable installations!

Pixelblaze is great for anyone making LED art, large or small, costumes, and wearables, or decorating cars and houses inside and out! With Pixelblaze V3's tools and documentation, it's easy to learn how to write patterns and dissect existing patterns to discover their secrets.

The web-based live editor and highly optimized expression engine make it fast and fun to write new LED patterns. You can store a hundred patterns and write new ones by entering mathematical expressions or code that updates live as you type. Pixelblaze was designed to make it easier to write LED patterns and get an intuitive feel for how code and math impact those patterns.

Sharing and finding patterns written by the community is easy, and there are over 200 patterns available that can be loaded as-is or used for inspiration in your own designs.

And that's not all, pixel maps let you focus on how your pattern looks in 2D and/or 3D space without worrying about coordinates or scaling for different installations. A pattern that works on one LED setup will work the same on a different LED setup.

Write a generative map in JavaScript, or use real-world coordinates in any unit. It supports arbitrary LED configurations without impacting pattern code. Examples include rings, 2D matrices, walled cubes, and volumetric cubes.

Adding UI controls to a pattern is as easy as writing a function. This lets you add sliders and color pickers to a pattern that can be used to adjust the look and feel of a pattern.

Made for LED Enthusiasts and Novices Alike

If you aren’t a coding wizard, don’t worry, many people with limited programming experience have found Pixelblaze’s editor approachable and fun to use.

The real-time editor, instant feedback, a variable watcher, and expression-centric pattern generation mean you won’t have to pull your hair out to find that missing semicolon or curly brace. Even run-time errors that would usually crash your program are harmless and show up right in the editor.

Pixelblaze isn't just made to be friendly; it's also powerful. It really shines in the hands of someone familiar with programming and comfortable writing expressions in a JavaScript or C-like syntax. If you are already doing this with a microcontroller, Pixelblaze was made for you.

Technical Details

Features and Specifications

Gettin??????g Started Guide
Dimensions: 11 mm x 33.3 mm
Pattern storage (1.4 MB): 100 patterns with previews, preloaded with dozens of patterns and annotated examples
LED strip mount: directly-solderable castellated pins and 0.1" header for 5 V, data, clock, and ground
Power supply: directly from the header, with an onboard 3.3 V regulator for the ESP32
Programming pads: six pads on the underside of the board carry GND, EN, 3.3 V, RX0, TX0, and IO0 for factory programming and can be hacked to support the Sensor Expansion Board
