Pimoroni Unicorn HAT

SKU: CE00315

$42.95 AUD, inc GST
$39.05 AUD, exc GST

More Views

Pimoroni Unicorn HAT
42.95 AUD

SKU: CE00315

$42.95 AUD, inc GST
$39.05 AUD, exc GST
2 reviews 0 5 5

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $9.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

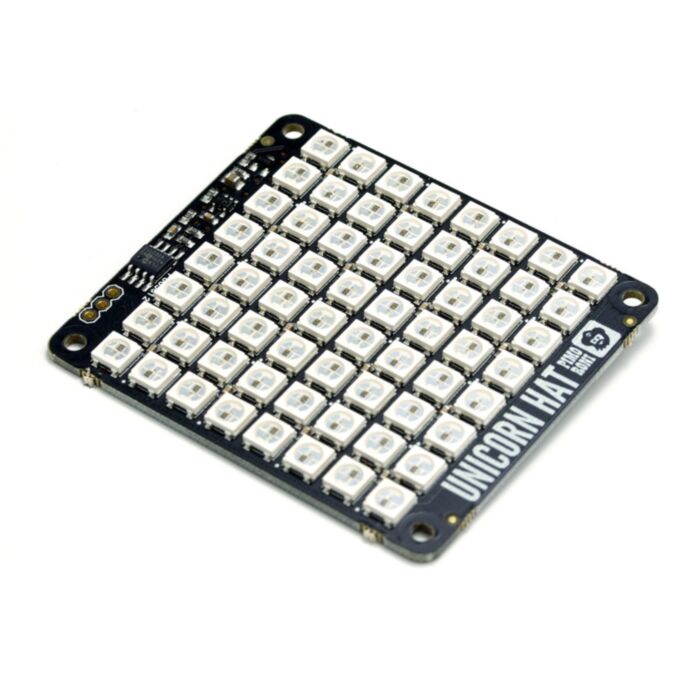

What's going to protect your beloved B+ Pi from an onslaught of rainbow-coloured fusion? That's right, it's the Unicorn HAT.

Sporting a matrix of 64 (8 x 8) RGB LEDs and powered directly from the Pi this is the most compact pocket aurora available.

Unicorn HAT provides a wash of controllable colour that is ideal for mood-lighting, 8x8 pixel art, persistence of vision effects, status indications, or just blasting colour into your surroundings.

  • 64 RGB LEDs (WS2812B)
  • Python API
  • Compatible with Raspberry Pi B+
  • EEPROM with Raspberry Pi HAT configuration details
  • LED data driven via DMA over PWM

You need a good 2A power supply for your Pi for Unicorn HAT to work. We recommendthe official Raspberry Pi power supply.

Raspberry Pi 2 Users! Click here for the latest software updates

  • Warning: RGB LEDs are bright enough to cause eye pain, do not look at them directly when brightly lit. We recommend the use of a diffuser.
  • Compatibility (Audio): As the HAT uses the PWM hardware and GPIO18, it will interfere with analogue audio playback. HDMI should be just fine though! :D
  • Compatibility (Model B): HATs are only compatible with the newer B+ Raspberry Pi. They will not fit nicely on a B. You can hack it to work with a Model B though.
  • Compatibility (Pibow): The Unicorn HAT (and other HATs) now work just fine with our range of fine Pibows! If you have any problems getting a hat to fit, email our support ninjas for help and advice.
  • Photo-sensitivity warning: Flashing, strobing, and patterns of lights may cause epileptic seizures. Always take care and immediately stop using if you feel unwell (dizziness, nausea, affected vision, eye twitching, disorientation).

Code and Examples

You can find a range of stuff to tame your new cyber-pony on the GitHub repo:

https://github.com/pimoroni/unicorn-hat
