Pimoroni Presto – Starter Kit

Your new RP2350-powered, connected desktop companion! Features a 4" square touchscreen, elegant black aluminium stand and RGB backlighting.

Presto is a swish, fully programmable display designed to keep precious digital information close to your fingertips. Make it do anything you want...

Calendar updates? Check.

Weather reports? Sure!

Photos of favourite humans or animals? Of course.

Generative digital art? It would be rude not to.

It features a tasty, full colour 4" square touchscreen IPS display, with all the power of Raspberry Pi's new RP2350 chip behind it. Also behind it is some sweet 7 zone RGB backlighting, a piezo speaker for alert boops, an SD card slot for adding storage and a battery connector, so you can power Presto without having it tethered to USB. It also has a built-in RM2 wireless module for 2.4GHz wireless connectivity.

What's in the Starter Kit?

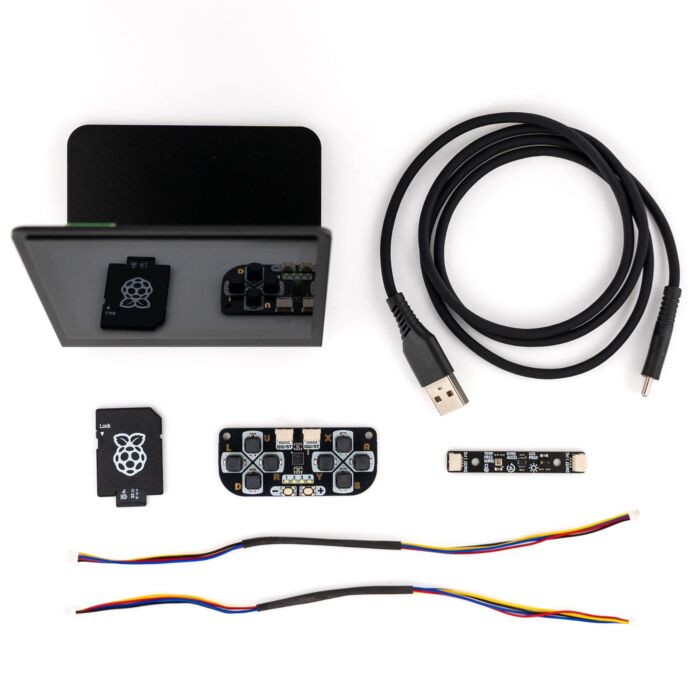

You can buy a Pimoroni Presto on its own (it comes fully assembled, with the screen pre-installed in the stand) or as part of a Starter Kit, which contains a cute little controller and some fun sensors to play with, as well as some extra bits we thought you'd find useful. The Starter Kit contains:

• Pimoroni Presto
• Qw/ST Pad (a tiny I2C game controller)
• Multi-Sensor Stick (an all-in-one super sensor suite for environmental, light and movement sensing)
• 2x Qw/ST cables to connect everything up
• 32GB microSD card
• A USB cable

Features

• Powered by RP2350B (Dual Arm Cortex M33 running at up to 150MHz with 520KB of SRAM)
• 16MB of QSPI flash supporting XiP
• 8MB of PSRAM
• Raspberry Pi RM2 module (CYW43439), supporting IEEE 802.11 b/g/n wireless LAN, and Bluetooth
• 4" square (480 x 480 pixel) IPS LCD screen with capacitive touch overlay
• Rainbow backlighting, courtesy of 7x mini SK6812 (Neopixel-compatible) RGB LEDs
• USB-C connector for programming and power
• Piezo speaker
• Reset and boot buttons (the boot button can also be used as a user button)
• MicroSD card slot
• Qw/ST (Qwiic/STEMMA QT) connector
• 2-pin JST-PH connector for adding a battery (3V - 5.5V)
• Pre-installed in a black anodised aluminium stand with rubber feet
• Comes fully-assembled (no soldering required)
• Programmable with C/C++ or MicroPython
• Schematic

Getting Started

Presto comes pre-loaded with MicroPython, the Presto launcher and some examples, but you can find the most recent version of the firmware and more examples below:

• Presto MicroPython firmware and examples

There's also a boilerplate project for if you'd prefer to program your Presto with C++.

• Presto C++ boilerplate

Connecting Breakouts

Presto has a Qw/ST (AKA Qwiic/STEMMA QT) connector, so you can connect up Qw/ST breakouts easily using a JST-SH to JST-SH cable.

• View everything Qw/ST!
• Breakouts currently compatible with our C++/MicroPython build

Notes

• Measurements: 110mm x 92mm x 80mm (H x W x D, approx)
• Note that Presto has no battery charging hardware onboard - this is so you can use either alkaline or LiPo batteries safely. You'll need to charge up your LiPo battery with a separate battery charger (we like LiPo Amigo).
• The battery connector can be used to power Presto with batteries that provide between 3V and 5.5V. At the lower end of that voltage range, you'll start to see dimming of the backlight and less vibrant colours. We'd suggest using a LiPo, or a 3x AA alkaline battery pack - check out the extras for some options.
