Pimoroni Pogo-a-go-go Solderless GPIO Pogo Pins

Rating:

100% of 100

SKU: CE06372 Brand: Pimoroni

Fit a pHAT fiddle-free! These solderless pogo GPIO pins, nuts, bolts, and spacers make fitting a pHAT to your Pi Zero (or Zero W) super-quick and easy. Pogo-a-go-go!

$15.17 AUD, inc GST

$13.79 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 16th of Aug

Quantity Discounts:

10+ $13.58 (exc GST)

Fit a pHAT fiddle-free! These solderless pogo GPIO pins, nuts, bolts, and spacers make fitting a pHAT to your Pi Zero (or Zero W) super-quick and easy. Pogo-a-go-go!

Pogo pins are springy and normally used for test jigs (we use them for this in the workshop), but it turns out they make a super-simple way to fit pHATs to Pi Zeros, no tools required! Pimoroni has had these ones specially engineered so that they're just the right size to give reliable electrical contact between Pi Zero and pHAT.

Because they're non-permanent, you can easily switch them around between different projects, no hassle. If you're brave and gentle, you can use just the two mounting holes closest to the header and make this kit stretch to two Pi Zeros and pHATs (assuming they use less than ten pins in total).

Kit includes

10x pogo GPIO pins
4x M2.5x12mm white nylon bolts
4x M2.5x7mm white nylon spacers
5x M2.5 white nylon nuts

Instructions

Find the pins used by the board you want to fit at pinout.xyz
Pop the four bolts through your Pi's mounting holes from below
Slide on the four spacers
Sit the pins with the short end in the Pi's GPIO, in the appropriate holes
Pop the pHAT on top
Secure with the four nuts

Notes

Most of our pHATs use less than 10 GPIO pins but, for some like Automation pHAT, pHAT BEAT, and Explorer pHAT, you may need more than 10 pins!
Small parts may be a choking hazard. Keep away from children three years old and younger. This is not a toy!
Pin length: ~9.5mm when extended, ~7mm compressed

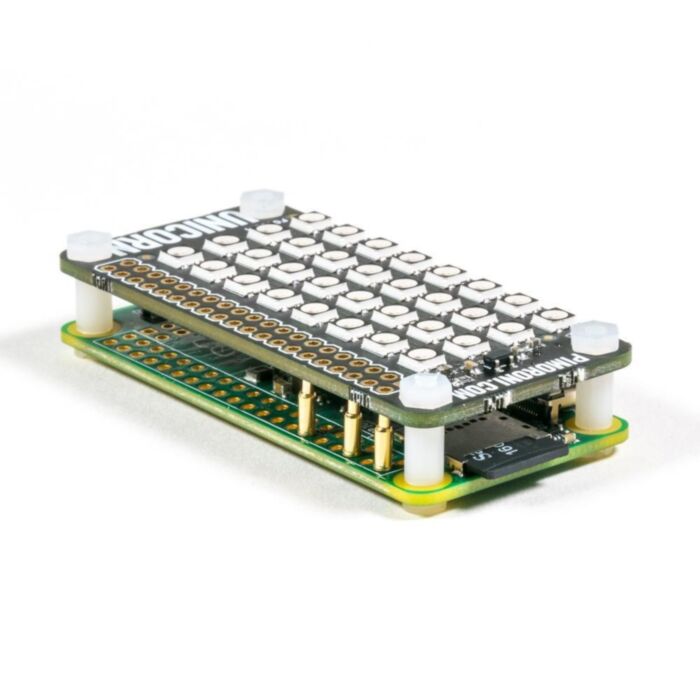

Pi Zero W and Unicorn pHAT not included in kit
