PicoProbe PCB kit

SKU: CE09158 Brand: Pimoroni
Turn your Raspberry Pi Pico into a debug probe This PCB is designed to turn a Pico into a nice debug probe using the PicoProbe software. The kit provides...
$20.90 AUD, inc GST
$19.00 AUD, exc GST

Quantity Discounts:

  • 10-25 $18.43 (exc GST)
  • 25+ $18.05 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Turn your Raspberry Pi Pico into a debug probe

This PCB is designed to turn a Pico into a nice debug probe using the PicoProbe software.

The kit provides everything you need to turn a Raspberry Pi Pico into a debug probe (Raspberry Pi Pico not included):

  • The Picoprobe-PCB
  • 1x cortex-M SWD 10pin header
  • 1x cortex-M SWD 10pin ribon cable
  • 1x 6 pin male header
  • 1x 6 pin female header
Mounting options

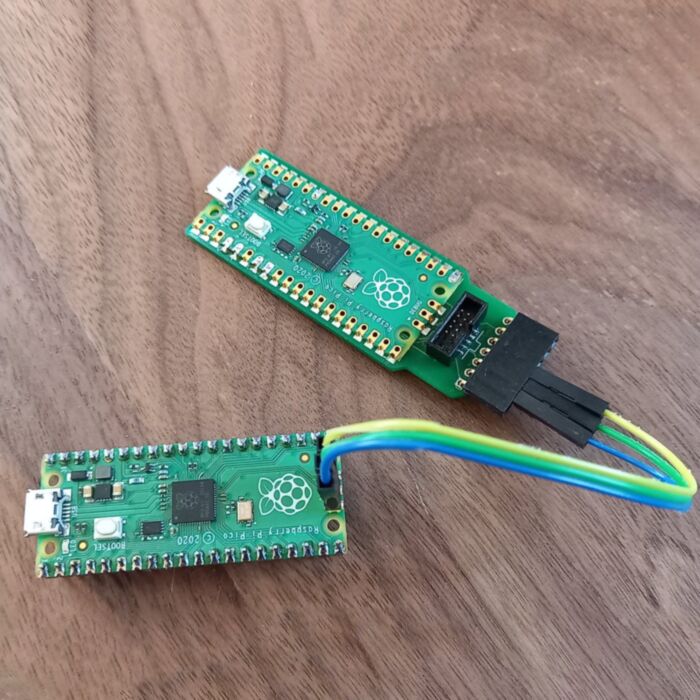

There are two ways to mount a Raspberry Pi Pico on the Picoprobe-PCB. You can either solder it directly for a slim/compact result (right), or use header to be able to re-use the Pico on other projects (left).

Install the Picoprobe software
  1. Either get the picoprobe .uf2 binary from the release here or compile it yourself from sources here.
  2. Hold the BOOTSEL button on the Pico, then connect to your computer using a micro USB cable.
  3. Drag and drop the UF2 file on to the RPI-RP2 drive.
  4. You should be good to go.

Plug the picoprobe SWD pin to the Pico that you want to debug

Build Raspberry Pi's openocd

$ sudo apt install automake autoconf build-essential texinfo libtool libftdi-dev libusb-1.0-0-dev$ git clone https://github.com/raspberrypi/openocd.git --branch picoprobe --depth=1 --no-single-branch$ cd openocd$ ./bootstrap$ ./configure --enable-picoprobe$ make -j4

Run openocd

$ ./src/openocd -s tcl -f interface/picoprobe.cfg -f target/rp2040.cfg

Debug!

Now that openocd is connected, you can start debugging with GDB for instance.

$ arm-eabi-none-gdb(gdb) target extended-remote :3333

Case

Kyle (@AandKP) designed a case for the PicoProbe PCB. You can find it on Thingiverse.
