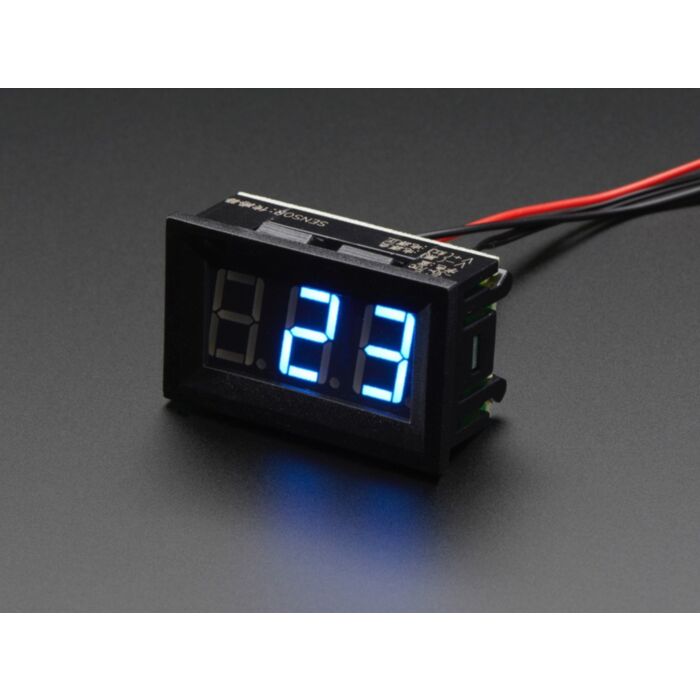

Panel Temperature Meter / -30 to +70 °C

SKU: ADA576

$16.95 AUD, inc GST
$15.41 AUD, exc GST

More Views

Panel Temperature Meter / -30 to +70 °C
16.95 AUD

SKU: ADA576

$16.95 AUD, inc GST
$15.41 AUD, exc GST
In stock, with a short lead time. 62 units dispatch in 4 to 8 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Tue, 31st of Jul with Express Post within Australia.

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Put a temperature meter anywhere with this very handy display. This panel meter displays the temperature of the attached waterproof 1% thermistor in °C. It does require a DC voltage to run, at 4.5-30VDC. It has reverse polarity protection in case you swap the power leads by accident.

To use, simply connect the thin red wire to a positive supply, and the thin black wire to ground. Then tape the black thermistor bulb to whatever you want to measure - or leave it loose to measure ambient temperature. The display has a microcontroller that will read thermistor resistance and display the corresponding temperature from -30°C to 70°C with 1 °C precision on a 3-digit 0.56" tall 7-segment display. The meter draws 3-4mA to power the microcontroller and display. This particular LED display is a nice vivid blue, which Adafruit found very readable. To mount to your enclosure, simply cut a 45.5mm × 26.5mm rectangle and snap it in.

This meter can only display the temperature in Centigrade °C, it cannot be modified to °F and we do not have a version that is °F.

Technical Details

Dimensions:

  • Dimensions: 48x29x21mm
  • Digit size: 14mm/0.56" high, blue LEDs
  • Panel cutout: 45.5mm x 26.5mm
  • Power lead length: 15cm
  • Thermistor lead length: 12cm
  • Refresh rate: about 2 Hz

Power specifications:

  • 4.5V to 30V DC input
  • 0.1V precision
  • 3-4mA draw
  • Blue LED display
  • Reverse polarity protected
Documentation and Resources:
