On-Off-On-Off Alternating Power Button / Pushbutton 3-Way Toggle

SKU: ADA1684

$3.50 AUD, inc GST
$3.18 AUD, exc GST

More Views

On-Off-On-Off Alternating Power Button / Pushbutton 3-Way Toggle
3.5 AUD

SKU: ADA1684

$3.50 AUD, inc GST
$3.18 AUD, exc GST
In stock, with a short lead time. 108 units dispatch in 4 to 7 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Wed, 30th of Aug with Express Post within Australia.

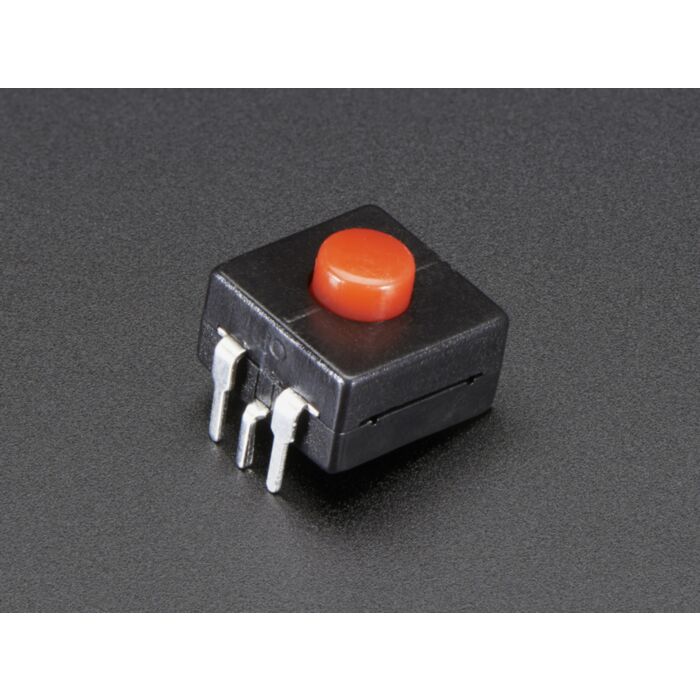

Push once to turn one side on, push again to turn off, push again to turn the other side on, one last push and its off again! It's basically a push-button toggle switch that connects and disconnects the middle pin from either of the two side switches with every click. This clicky switch makes a great power switch or mode toggler. Adafruit like this switch because it's breadboard friendly and more fun than a power switch. Can reliably handle up to 500mA and up to 12VDC. This is a really satisfying switch.

Note: The top of this button may come in red or black.  The two buttons are identical.  We cannot control which color button you'll receive.

The leads are not on a perfect 0.1" grid so for use with a breadboard just bend the leads out just a tad and snap into a solderless breadboard or perfboard.

Technical Details

  • Ambient Temperature: -25ºC ~ 70ºC
  • Rated Load: 12V @ 0.5A
  • Contact Resistance: ≤50mΩ
  • Operating force: 5N ~ 12N

Dimensions:

  • 12mm x 12mm x 7mm / 0.5" x 0.5" x 0.3"
  • Weight: 1.2g
Documentation and Resources:
