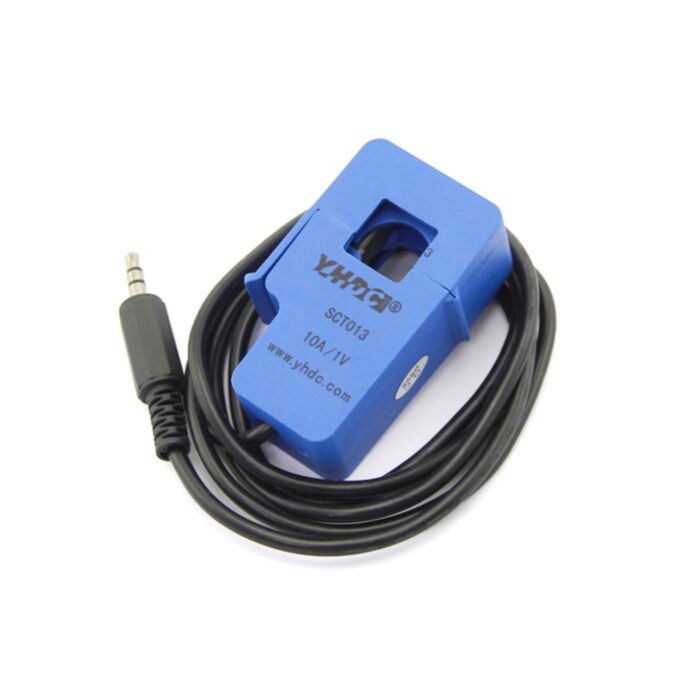

Non-invasive AC Current Sensor (10A max) (Seeed Studio)

SKU: SS101990059 Brand: Seeed Studio

Introduction: What is CT sensors Current transformers (CTs) are sensors that are used for measuring alternating current. They are particularly useful for...

$21.75 AUD, inc GST

$19.77 AUD, exc GST

Available with a lead time
Expect dispatch between May 09 and May 12

Quantity Discounts:

10+ $18.98 (exc GST)
25+ $18.39 (exc GST)

Ever wanted to measure the power draw of your AC appliance or load? These non-invasive Current Transformers (CTs) are perfect for this, and they don't even need to be spliced in! Just clamped around a live or neutral wire.

Specifications:

Input current: 0-10A AC
Output voltage: 0-1V
Hole Size: 13mm
Cable length: 1m
Dielectric Strength: 1000VAC (1m at 5mA)
Operating temperature: 25°C - 70°C
Non-linearity: ±3%

Resources:

While devices like this one in our store may be rated for 240V use, we recommend that any decisions around LV be made by qualified technicians that are licensed to work with mains power. That goes for the work itself, it is a legal requirement anyhow. Stay safe and keep to ELV projects, or employ a contractor to help
