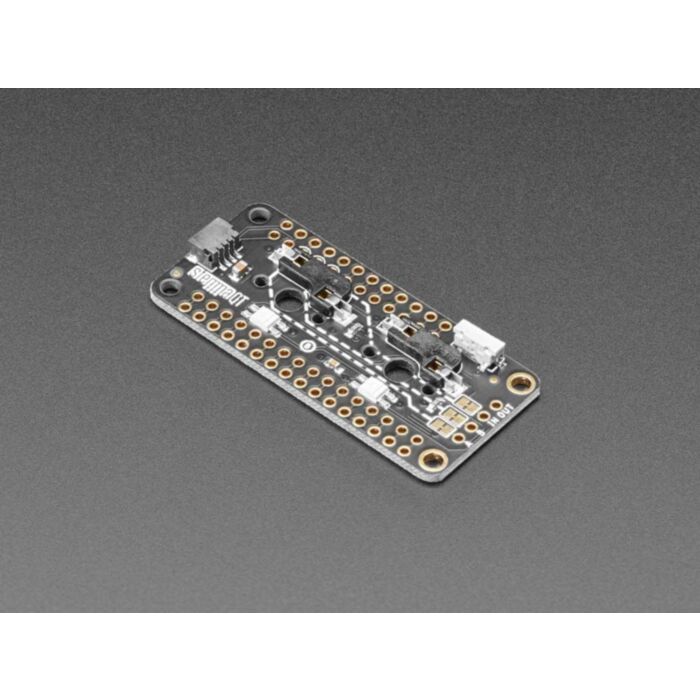

NeoKey FeatherWing - Two Mechanical Key Switches with NeoPixels

SKU: ADA4979 Brand: Adafruit

The only thing better than a nice mechanical key, is two of them, and ones that also can glow any color of the rainbow - and that's what the Adafruit NeoKey FeatherWing will let you do! This Wing plugs into any/all Feather main boards and can fit two Cherry MX or compatible switches to turn your Feather into the lil'est macro keypad.

$9.45 AUD, inc GST

$8.59 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10+ $8.25 (exc GST)
25+ $7.99 (exc GST)

Description

The only thing better than a nice mechanical key, is two of them, and ones that also can glow any color of the rainbow - and that's what the Adafruit NeoKey FeatherWing will let you do! This Wing plugs into any/all Feather main boards and can fit two Cherry MX or compatible switches to turn your Feather into the lil'est macro keypad.

Each Wing has two Kailh sockets, which means you can plug in any MX-compatible switches instead of soldering them in. You may need a little glue to keep the switches in place: hot glue or a dot of epoxy worked fine for us.

Beneath each switch is a reverse-mount NeoPixel pointing up through the spot where many switches would have an LED to shine though. The two pixels are chained together so you can control them as one 2-pixel NeoPixel strand.

Adafruit wired the switches up very simply, so you can use with any Feather. There's jumper pads you can cut to re-wire the switches and LED strand.

Switch A - Connects to the Feather pin to the left of SCL, on most Feathers this is pin D5
Switch B - Connects to the Feather pin two pins to the left of SCL, on most Feathers this is pin D6
NeoPixel Input - Connects to the Feather pin three pins to the left of SCL, on most Feathers this is pin D9
Bonus STEMMA QT connector allows you to make solderless connections between your Wing and a wide range of other sensors and accessories using a compatible cable. QT Cable is not included, but Adafruit have a variety in the shop.

Please note, each order comes with one assembled FeatherWing PCB and a two sticks of break-off header. Soldering is required to attach the header and connect to a Feather. Two mechanical switches and key caps are not included! Use any MX-compatible switch: Kailh, Gateron, etc all work.

Technical Details

Product Dimensions: 50.0mm x 23.2mm x 5.2mm / 2.0" x 0.9" x 0.2"

This product is listed in:

Components & Parts>Switches>Other
