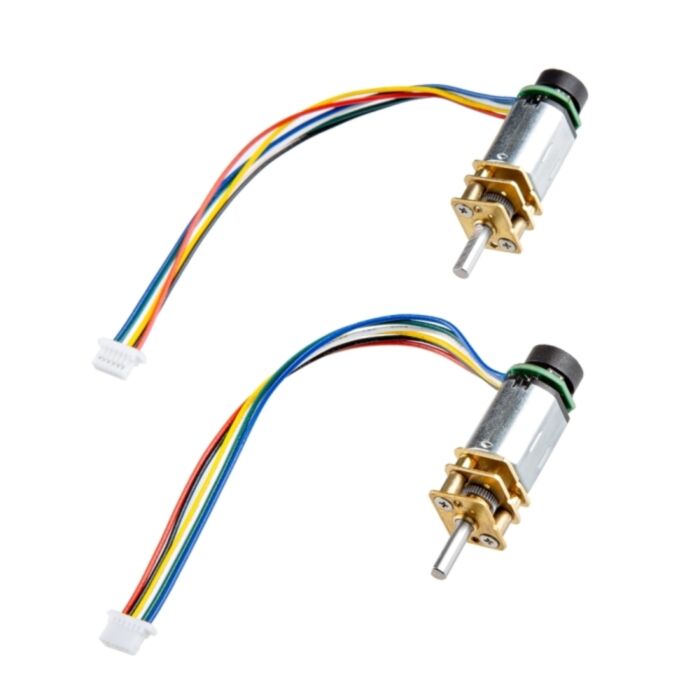

N20 Motor With Encoder and Cable (Pair)

SKU: ROB-28633 Brand: Sparkfun

N20 motors are very popular for small-scale robots applications, because they're super compact, powerful, and durable. The entire motor fits within the...

Special Price $28.97 AUD, inc GST

Regular Price $36.11 AUD, inc GST

$26.34 AUD, exc GST

Special pricing ends 11 August 2025

* this special may end earlier than shown

Available with a lead time
Expect dispatch between May 20 and May 23

N20 motors are very popular for small-scale robots applications, because they're super compact, powerful, and durable. The entire motor fits within the 12mm x 10mm profile of the gearbox, which has a gear ratio of 31.5:1 and 10mm long 3mm diameter D-shaft. This pair also includes magnetic encoders with 14-pole magnets, enabling a resolution of 882 counts per revolution of the output shaft. They are rated for up to 12V, at which they can achieve a speed of 1000RPM at 0.06A. Those specs are approximately halved when using at 6V, such as with the XRP. Speaking of which, the pre-soldered 100mm cable has a 6-pin JST-SH connector that plugs directly into the XRP Controller for each integration for projects with the XRP.

Features & Specs

Specs (as determined by SparkFun):

Dimensions: 10mm x 12mm x 41.5mm
Gear ratio: 31.5:1
Encoder:
- 14-pole magnetic disc, 2 Hall effect sensors
- 882 counts per revolution of output shaft
No load @ 6V:
- Speed: 500rpm
- Current: 0.03A
Stall @ 6V:
- Torque: 0.5kg*cm
- Current: 0.45A

Documentation

Datasheet

This product is listed in:

Components & Parts>Motors>Metal Gearmotors>Micro
