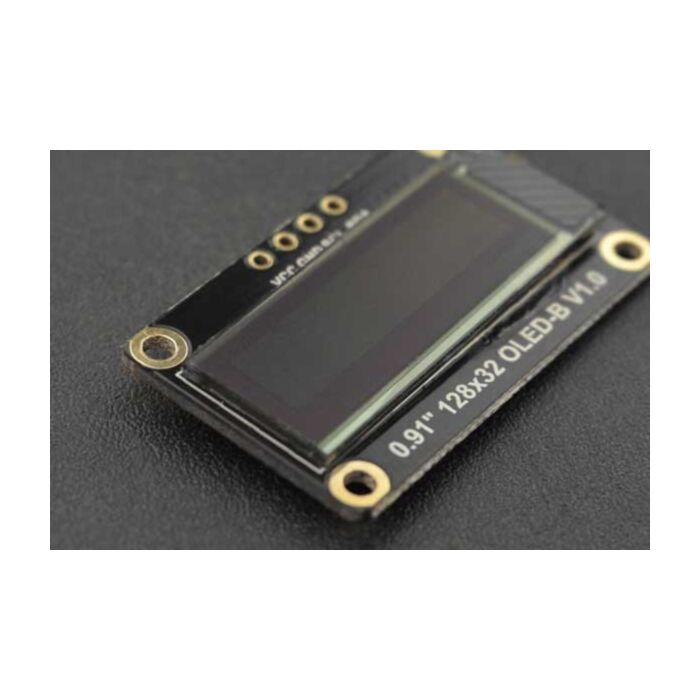

Monochrome 0.91”128x32 I2C OLED Display

Rating:

100% of 100

SKU: DFR0648 Brand: DFRobot

This OLED display module uses the SSD1306 drive chip, has 128x32 self-illuminating white pixels, and adopts the back chip-mounting pad design. Small size, the length...

$16.25 AUD, inc GST

$14.77 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

10-25 $14.18 (exc GST)
25+ $13.74 (exc GST)

This compact OLED module uses the common SSD1306 driver to drive a matrix of 128x32 self-illuminating white pixels. These small displays find their way into many projects like DIY wearables, miniature game consoles, desktop widgets, and more!

Of note is the low power consumption (2-25mA depending on the portion of pixels lit), small size (20mm x 33mm), and easy driving from Arduinos, ESP32s, M0-based microcontrollers and more.

The only downside with these screens is that pixels left on for long periods can "burn-in" leading to uneven lighting. This is an easy fix, just make sure your code is only using the screen when required

Specifications

Operating Voltage: 3.3V - 5V
Color Space: Monochrome
Resolution: 128 x 32
Interface: I²C
Driver IC: SSD1306
Brightness: 180 cd/m²
Fully-lit Power Consumption: 25mA
Fully-off Power Consumption: 2mA
Operating Temperature: -30°C - 70°C
Display Area: 22.38mm x 5.58mm (0.88" x 0.22")
2mm Mounting Holes
Weight: 2.7g

Documents and Resources

Product Wiki

What's in the Box

Monochrome 0.91”128x32 I2C OLED Display x1
2.54 chip-mounting pin-4P x1

This product is listed in:

Displays & Screens>Graphic
