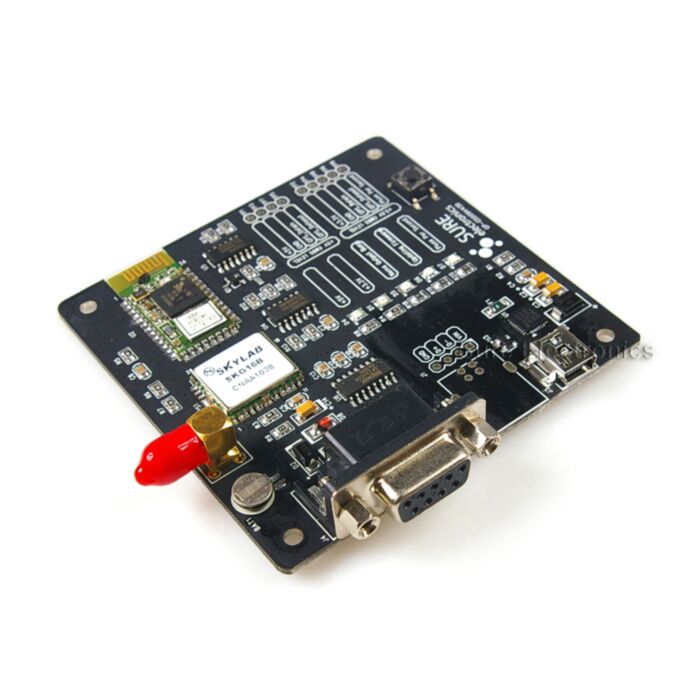

Mini USB & Bluetooth Interface GPS Demo Board

SKU: 017-MB-CM12118

$53.56 AUD, inc GST
$48.69 AUD, exc GST

More Views

Mini USB & Bluetooth Interface GPS Demo Board

SKU: 017-MB-CM12118

$53.56 AUD, inc GST
$48.69 AUD, exc GST
1 reviews 0 5 5


  • $6.95 Standard (2-4 days, tracked)
  • $9.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This product has been retired and kept here for reference.

This item is the latest GPS demo board provided by Sure Electronics which utilizes SKG16B as the receiver of this item. Compared with the old version which employs Ublx TIM-LC module, this version is smaller in size and faster in speed. Moreover, its sensitivity and accuracy are also improved. It supports NMEA 0183 V3.01 standard. Interfaces that can suit the requirements of different applications like USB, RS232 and bluetooth are also integrated to facilitate its use. An external magnetic antenna is provided with this module.


  • Low Power consumption
  • Powered by USB port, no need to feed with DC power supply
  • RF Receiver of Noise Figure is at 2.5 dB
  • High Sensitivity -161 dBm( indoor)
  • Seamless Outdoor/Indoor Operation
  • Support standard NMEA-0183 V 3.01
  • Graphic GPS testing software is provided for free
  • Software for modifying baud rate is provided for free
  • Interfaces: USB Mini-B and USB B interface, RS232 Female Interface, bluetooth

Package Contents:

  • Mini USB & Bluetooth Interface GPS Demo Board×1
  • External magnetic antenna SMA connector for GPS receiver ×1
  • Mini USB cable×1


This product is listed in:

Documentation and Resources:
  • The Maker Revolution
  • The Maker Revolution celebrates the creation of new devices and the modification of existing ones - the transition from a consumer buying goods to eventually having a major part in their creation. The Maker Revolution places strong emphasis on free (...

Product Comments

Customer Reviews

  1. Review by Robert - EXCELLENT PRODUCT verified purchaser

    Great product. 1 PPS signal output very useful. Good receiver sensitivity, no trouble getting satellites through the window of the house. Handy having a long antenna lead. Serial output from USB works reliably into Linux and Windows system. Works well with Raspberry Pi.

    Only shortcoming was I could not find out how to use the Blue Tooth. My phone would not connect and there are no instructions on how to use it that I could find.

    Overall the best and most versatile GPS module I could find. (Posted on 13/10/2014)
