13.56MHz RFID/NFC Card - 1KB

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

Note: Before purchasing you should double check the compatibility with your device. This product was confirmed working with:

Nokia Seven Plus - Android 10

Samsung Galaxy S7 - Android 9

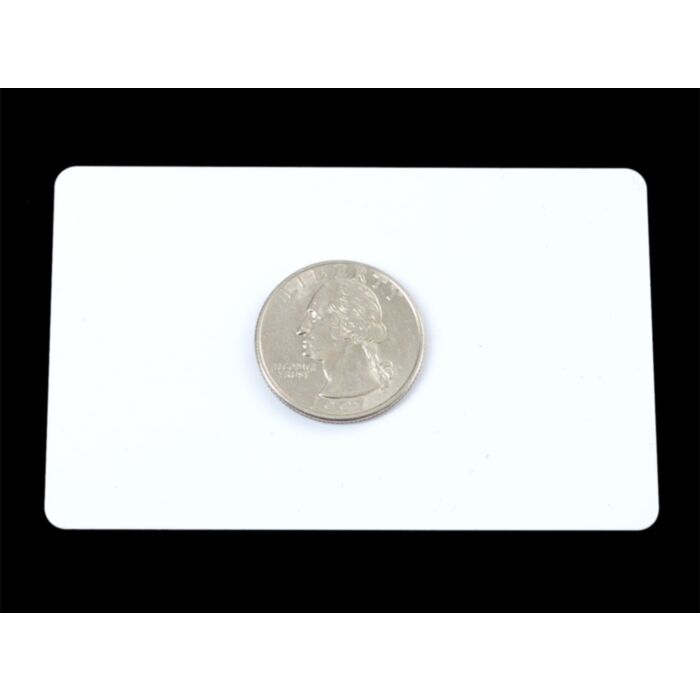

This is a blank 13.56MHz RFID/NFC card - often used for train/bus passes but also found in other systems where a proximity card is desired. The tag contains a small RFID chip and an antenna, and is passively powered by the reader/writer when placed a couple inches away.

These can be read by almost any 13.56MHz RFID/NFC reader but make sure it can handle ISO/IEC 14443 Type A cards as there are a few other encoding standards (like FeLica) They are tested and work great with both Adafruit's PN532 NFC/RFID breakout board and Adafruit NFC/RFID Shield for Arduino!

These chips can be written to & store up to 1 KB of data in writable EEPROM divided into banks, and can handle over 100,000 re-writes. You can use Adafruit's PN532 NFC/RFID breakout board or Adafruit NFC/RFID Shield for Arduino to read and write data to the EEPROM inside the tag. There is also a permanent 4-byte ID burned into the chip that you can use to identify one tag from another - the ID number cannot be changed.

These use a ISO/IEC 14443 Type A chipset, which used to be the 'classic' NFC chipset. In ~2014, the NFC forum decided not to support this chipset anymore, so newer phones do not support it. This only matters if you're trying to use this tag with a phone/tablet.

Technical Details

RFID chip specification:

1 KiloByte (8 KiloBit) non-volatile EEPROM storage
Built in encryption engine with 48-bit key
4 Byte unique identifier burned into the chip
13.56 MHz frequency

Tag specification:

85.5mm x 54mm x 1mm /3.36" x 2.1" x 0.03"
6.3 grams / 0.2 oz
Works about 4" away from reader
