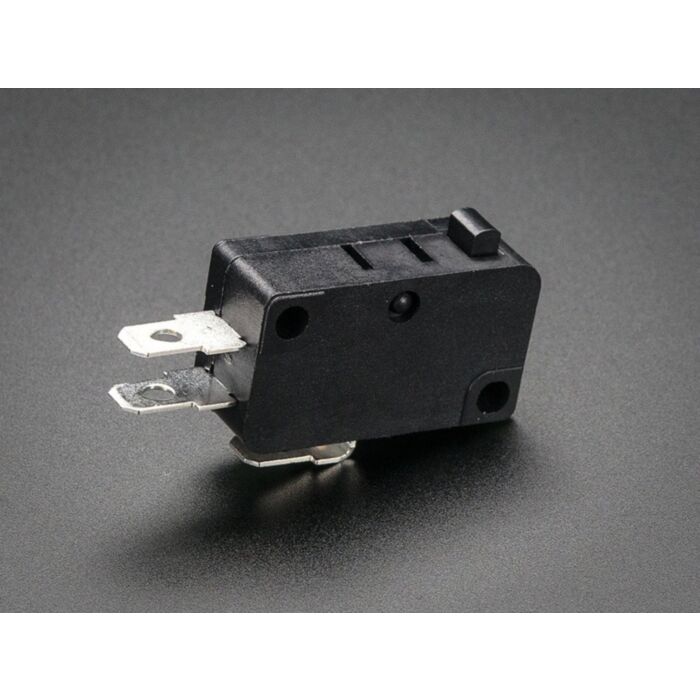

Micro Switch - Premium Zippy 3-Terminal

Rating:

100% of 100

SKU: ADA817 Brand: Adafruit

Micro-switches are often found in arcade buttons and joysticks but they're also really handy in any kind of mechatronics project or when you need a basic sensor...

$4.30 AUD, inc GST

$3.91 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 06 and Jan 08

Quantity Discounts:

10-25 $3.75 (exc GST)
25+ $3.64 (exc GST)

Micro-switches are often found in arcade buttons and joysticks but they're also really handy in any kind of mechatronics project or when you need a basic sensor. They are always 'tactile' (clicky feeling), and 'momentary' (the switch closes when pressed, then snaps open once released). They come in a few different varieties (mostly having to do with the contacts and how big the actuator is).

This microswitch has a small bump actuator, but They also have kinds with a lever, roller lever and long wire. Compared to the other 'generic' micro-switches We carry, this one is higher quality and has better specifications. This is a basic micro switch for arcade and mini robots, and Adafruit don't have any detailed specifications for it so this switch is recommended for use with 30VDC and 250mA max. A great replacement for arcade controls.

Technical Details

Operating Frequency (mechanical): 120 operations/min
Operating Frequency (electrical): 5A-10~30 operations/min
Contact Resistance (initial): 100m O (Max.)
Insulation Resistance (at 500VDC): 100M O (Min.)
Dielectric Strength (50-60Hz): 1000VAC RMS
Storage Temperature: -25°C to 85°C
Storage Humidity: At 40°C,Max. 85% RH (Max.)
Service Life (mechanical): Min. 10,000,000 operations
Service Life (electrical): 5A - Min. 10,000 operations

This product is listed in:

Components & Parts>Switches>Microswitches
